Toyota Forklift 7300-R35TT | 1.5 ton

Description

Toyota Forklift 7300-R35TT | 1.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 7300-R35TT | 1.5 ton

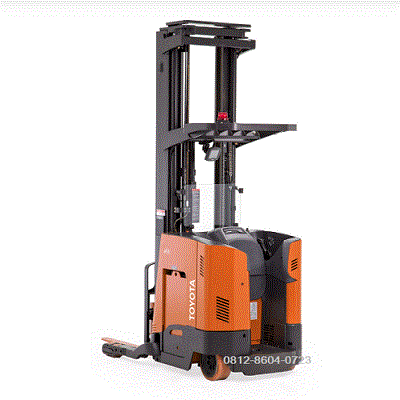

Toyota Forklift 7300-R35TT | 1.5 ton (often associated with the Raymond 7000 Series, as Raymond is a Toyota company) is a stand-up reach truck designed for high-density, narrow-aisle warehouse environments.
The “R35” designation typically indicates a base capacity of 3,500 lbs (approximately 1.5 tons), and “TT” refers to its Triple-Stage Mast (Triplex).
Below are the primary technical specifications for this unit:

General Specifications

Model: 7300-R35TT.
Manufacturer: Toyota Material Handling / Raymond.
Configuration: Stand-up Reach Truck (Narrow Aisle).
Power Source: 36-Volt Electric.
Operator Type: Rider Stand-up.

Load & Capacity

Rated Capacity: 3,500 lbs (1,588 kg).
Load Center: 24 inches (600 mm).
Baseleg Heights: Typically 4″ or 5″ (102 mm or 127 mm) depending on the configuration.

Mast & Dimensions

Mast Type: 3-Stage (Triplex).
Maximum Elevated Height: Varies by specific sub-model, commonly up to 301 inches (approx. 7.6 meters).
Free Lift: Features “Full Free Lift,” allowing the forks to rise significantly before the mast begins to extend, which is essential for low-clearance areas.
Turning Radius: Approximately 72.8 inches (1,850 mm), optimized for narrow aisles.
Overall Width: Typically around 42 inches, though this can vary based on the baseleg opening.

Performance Data

Travel Speed: * Loaded: ~7.5 mph (12 km/h).
Unloaded: ~8.0 mph (13 km/h).
Lift Speed: * Loaded: ~80 fpm (feet per minute).
Unloaded: ~120 fpm.
Braking: Regenerative braking system (AC technology) that returns power to the battery during deceleration.

Key Features

ACR System: Utilizes AC motors for both traction and lift, resulting in smoother control, faster cycle times, and reduced maintenance.
Inertial Dampener: An automated system that stabilizes the mast when handling loads at high elevations.
Open View Mast: Designed to maximize operator visibility through the mast sections.
Universal Stance: Allows the operator to face forward or sideways for better visibility during travel and load handling.

Application Compatibility

Aisle Width Requirement: Generally requires an aisle width of approximately 8.5 to 9 feet (depending on pallet size).
Common Use Cases: Retail backrooms, general warehousing, and cold storage (with optional heater packages).

Main Specification, Toyota Forklift 7300-R35TT | 1.5 ton

Model : 7300-R35TT
Load Capacity : 1500 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
