Toyota Forklift RRE140H | 1.4 ton

Description

Toyota Forklift RRE140H | 1.4 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift RRE140H | 1.4 ton

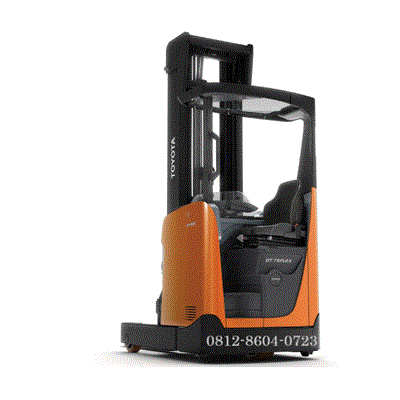

The Toyota BT Reflex RRE140H is a high-performance electric reach truck part of the E-series, specifically known for its unique tilting cabin designed to improve visibility and reduce operator strain at high lift heights.
Below are the primary technical specifications for the 1.4-ton model:

Core Performance Toyota Forklift RRE140H | 1.4 ton

• Load Capacity: 1,400 kg.
• Load Center: 600 mm.
• Power Type: Electric (48 Volt).
• Travel Speed: 10.3 km/h (laden) / 11 km/h (unladen) — High-speed versions can reach 14 km/h.
• Lift Speed: 0.38 m/s (laden) / 0.68 m/s (unladen).
• Lowering Speed: 0.55 m/s (laden) / 0.59 m/s (unladen).

Dimensions & Weight

• Service Weight (incl. battery): Approx. 3,390 kg.
• Overall Length: 2,413 mm.
• Overall Width: 1,270 mm.
• Wheelbase: 1,311 mm.
• Turning Radius: 1,573 mm.
• Aisle Width (1000×1200 pallet crosswise): 2,687 mm.
• Ground Clearance (center of wheelbase): 74 mm.

Mast & Lifting

• Max Lift Height: Typically up to 11,000 mm (11 meters) depending on mast configuration.
• Free Lift: Up to 3,737 mm (depending on mast).
• Mast Type: Often equipped with a Triplex (3-stage) mast.
• Fork Dimensions: 40 mm x 100 mm x 1,150 mm (standard).

Wheels & Chassis

• Tire Material: Polyurethane (Vulkollan).
• Wheel Configuration: 1x drive wheel / 2x support wheels.
• Front Wheel Size: ø343 x 140 mm.
• Rear Wheel Size: ø300 x 106 mm.

Key Features

• Tilting Cab: The cabin automatically tilts back as the forks rise, optimizing visibility of the load and reducing neck/shoulder fatigue.
• Transitional Lift Control (TLC): Provides shock-free lifting and lowering, even at maximum speeds.
• Total View Concept: Enhanced overhead guard design for clear visibility of fork tips at height.
• Smart Truck: Equipped with telematics hardware (I_Site) for fleet management and performance monitoring.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
