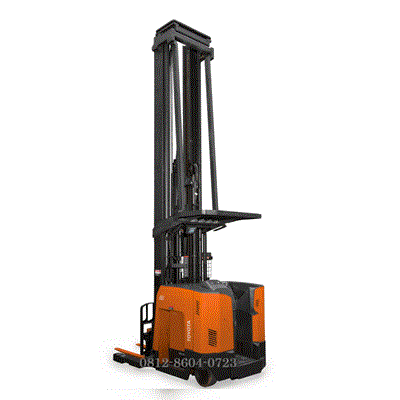

Toyota Forklift 7530-R45TT | 2 ton

Description

Toyota Forklift 7530-R45TT | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 7530-R45TT | 2 ton

Toyota / Raymond 7530-R45TT merupakan unit High-Capacity Reach Truck (Narrow Aisle Forklift) yang diproduksi di bawah payung Toyota Material Handling Group (menggunakan platform teknologi Raymond 7000 Series).
Unit ini dirancang khusus untuk intensitas kerja tinggi di dalam gudang dengan lorong sempit (narrow aisle) yang membutuhkan kapasitas angkat optimal pada ketinggian ekstrem.
Kode R45TT merujuk pada kapasitas dasar 4.500 lbs (sekitar 2 ton / 2.041 kg) dengan spesifikasi tiang mast jenis Triple Stage / Three-Stage (TT).
Berikut adalah spesifikasi teknis utama untuk unit Toyota-Raymond 7530-R45TT | 2 Ton:

Kapasitas & Performa Angkat

Kapasitas Angkat Maksimum (Load Capacity): 4.500 lbs / 2.041 kg (2 Ton) pada Load Center 24 inci (600 mm).
Tinggi Angkat Maksimum (Max. Elevated Height): Mencapai hingga 542 inci (13.767 mm / 13,7 meter) tergantung pada konfigurasi spesifik mast.
Kemampuan Angkat di Ketinggian (Capacity Retention): Mampu mengangkat beban hingga 2.000 lbs (±907 kg) hingga ketinggian 505 inci (12,8 meter).
Tinggi Angkat Bebas (Free Lift): Kisaran 126 hingga 141 inci (3.200 mm – 3.581 mm) bergantung pada Overall Collapsed Height (OACH) tiang mast.
Sistem Mast: 3-Stage (TT) dilengkapi dengan Power Tilt dan Sideshift bawaan untuk mempermudah penyesuaian posisi garpu.

Dimensi & Desain Sasis

Panjang Unit ke Muka Garpu (Head Length w/ Sideshift): ± 65,2 inci (1.656 mm).
Panjang Total Unit (Total Truck Length): ± 85,5 inci (2.172 mm).
Lebar Sasis (Power Unit Width): 49,5 inci (1.257 mm).
Jarak Sumbu Roda (Wheelbase): 64,9 inci (1.648 mm).
Radius Putar (Turning Radius): Minimal 82,6 inci (2.098 mm), sangat lincah di lorong dengan lebar minimal mulai dari 2,6 meter.
Baseleg Opening (BLO): Tersedia opsi bukaan sasis kaki bawah 41 inci (1.041 mm) dan 45 inci (1.143 mm).
Ukuran Garpu Standar: 42″ x 4″ x 1,75″ (1.067 mm x 102 mm x 44 mm).

Sistem Elektrikal & Baterai

Tegangan Sistem (Voltage): 36 Volt.
Kapasitas Baterai Maksimum: Hingga 1.395 Ampere-hours (Ah).
Tipe Konektor Baterai: SB-350 (Warna Abu-abu / Gray).
Pilihan Sel Daya: Kompatibel baik dengan baterai konvensional Lead-Acid maupun teknologi Lithium-ion.

Penggerak, Roda, dan Kecepatan

Sistem Motor Penggerak: Menggunakan ACR System™ (AC Control & Drive System) yang memberikan akselerasi responsif dan pengereman elektronik yang halus.
Kecepatan Melaju (Travel Speed): Mencapai hingga 12,1 km/jam (kondisi tanpa beban).
Gradabilitas (Gradability): 5% hingga 13% bergantung pada kondisi beban.
Konfigurasi Roda (Bahan Hard/Soft Polyurethane):
Roda Penggerak Utama (Drive Tire): Dia. 13,5″ x Lebar 6″
Roda Idler Berkemudi (Steered Idler): Dia. 8″ x Lebar 4″ (Teknologi Steered Idler mencegah caster snap saat manuver mundur).
Roda Beban Depan (Load Wheels): Dia. 6″ x Lebar 4″

Fitur Unggulan & Ergonomi

Universal Stance: Posisi berdiri operator yang fleksibel, memungkinkan pandangan langsung ke arah rak/lorong saat maju maupun mundur tanpa perlu memutar leher secara ekstrem.

Regenerative Lowering & Braking: Mengisi ulang daya kembali ke baterai (mengembalikan arus hingga 10%) ketika tiang menurunkan beban atau saat unit melambat, sehingga memperpanjang masa pakai baterai per shift operasi.

Single-Axis Control Handle: Kontrol multi-fungsi satu tuas untuk mengoperasikan laju unit, mengangkat, serta menggeser garpu (sideshift) secara simultan.

7″ Multifunction Color Touchscreen Display: Layar digital terintegrasi untuk memantau status baterai, diagnostik kerusakan, performa unit, serta indikator berat dan ketinggian beban (Height-tilt Indicator).

Unit ini sangat cocok untuk operasional logistik, manufaktur, dan pergudangan high-density cold storage atau e-commerce fulfillment center yang memaksimalkan kapasitas penyimpanan vertikal (rak tinggi)

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load.

This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
