Toyota Forklift 7720-DR32TT | 1.4 ton

Description

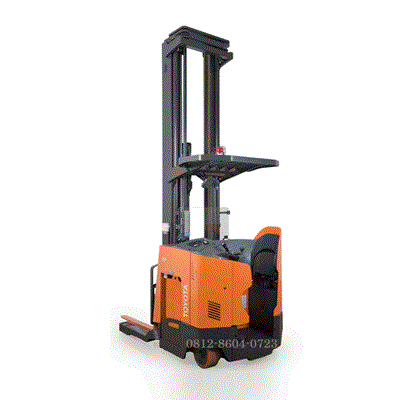

Toyota Forklift 7720-DR32TT | 1.4 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 7720-DR32TT | 1.4 ton

Unit Toyota Raymond Forklift tipe 7720-DR32TT (sering dikenal sebagai Raymond 7720 Deep-Reach Truck yang didistribusikan secara resmi di bawah grup Toyota Material Handling) merupakan jenis Reach Truck Double-Deep (Pantograph) dengan desain kabin Sit/Stand-up (bisa duduk maupun berdiri).

Unit ini dirancang khusus untuk menghemat ruang koridor (narrow aisle) dan memaksimalkan kapasitas penyimpanan gudang karena mampu menjangkau dua baris palet sekaligus (double-deep racking).

Berikut adalah spesifikasi umum dan teknis utama untuk unit Toyota Raymond 7720-DR32TT kapasitas 1,4 Ton:

Kapasitas & Performa Angkat

• Kapasitas Angkat Maksimal (Load Capacity): 3.200 lbs atau sekitar 1.451 kg (1,4 Ton).

• Titik Pusat Beban (Load Center): 24 inci / 600 mm.

• Tinggi Angkat Maksimal (Max. Lift Height): Dapat mencapai hingga 11.278 mm (11,2 meter) tergantung spesifikasi tiang (mast) yang dipilih.

• Tipe Tiang (Mast Type): 3-Stage Mast (Triple Stage) dengan fitur Free Lift (tiang tidak langsung naik saat fork mulai diangkat di area beratap rendah).

Dimensi & Desain Fisik

• Sistem Jangkauan (Reach Mechanism): Sistem Pantograph Double-Deep, yang memungkinkan garpu memanjang ke dalam rak ganda (menaruh/mengambil 2 palet sekaligus dari satu lorong).

• Posisi Operator (Operator Position): Sit/Stand-up dengan Flip-down seat. Desain ergonomis ini memungkinkan operator memilih posisi duduk untuk mengurangi kelelahan pada perjalanan jarak jauh, atau berdiri untuk visibilitas yang lebih baik.

• Aksesori Tambahan (Attachments): Dilengkapi fitur Integrated Sideshift (geser garpu kanan-kiri secara hidrolik tanpa mengubah posisi unit).

Sistem Kelistrikan & Penggerak (Powertrain)

• Sumber Daya (Power Unit): Listrik Baterai (Electric).

• Tegangan Baterai (Battery Voltage): 36 Volt (Kapasitas baterai tipikal hingga 875Ah – 1395Ah).

• Sistem Penggerak (Drive System): ACR System™ (Menggunakan teknologi motor AC untuk traksi dan lifting yang menghasilkan akselerasi lebih responsif, pergantian arah yang mulus, dan efisiensi energi yang tinggi).

• Kecepatan Jalan (Travel Speed): ± 12 – 12.8 km/jam.

• Fitur Hemat Energi: Regenerative Lowering, di mana sistem akan mengisi kembali daya ke baterai secara otomatis saat menurunkan beban, menghemat konsumsi baterai hingga lebih tahan lama per shift kerja.

Sistem Roda & Suspensi

• Ban Utama (Drive Tire): 1 unit Soft Polyurethane (Ukuran sekitar 13.5 x 6 inci).

• Ban Pengarah (Steered Idler Tire): 1 unit Hard Polyurethane.

• Roda Penopang (Load Wheels): 4 unit Hard Polyurethane berpasangan di bagian baseleg.

• Suspensi: A-Frame Suspension dan Inertial Dampener terintegrasi untuk meredam guncangan (sway) saat bermanuver mengangkut barang di ketinggian.

Aplikasi Penggunaan Terbaik

• Gudang dengan sistem High-Density Deep Racking.

• Industri FMCG, Logistik, dan Cold Storage (Gudang Pendingin).

• Operasional intensitas tinggi yang membutuhkan durasi 2 hingga 3 shift kerja.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
