Toyota Forklift 7720-R45TT | 2 ton

Description

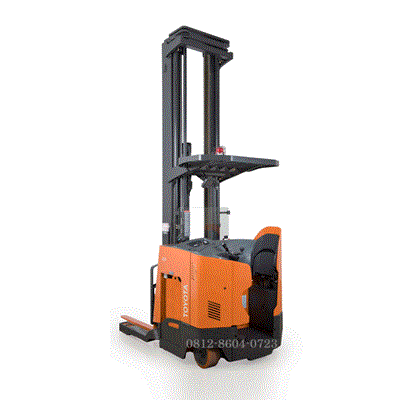

Toyota Forklift 7720-R45TT | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 7720-R45TT | 2 ton

The Toyota 7720-R45TT is a high-capacity, sit/stand reach truck designed for narrow-aisle warehouse applications.
It features a 2-ton (2,041 kg) nominal lift capacity and is engineered for high-intensity operations involving long travel distances and high-level stacking.

Core Specifications

• Model: 7720-R45TT (Single-Reach).
• Power Type: 36-Volt Electric.
• Load Capacity: 4,500 lbs (2,041 kg) at a 24″ (600 mm) load center.
• Operator Position: Sit/Stand (features a flip-down seat for postural relief).
• Mast Type: 3-Stage (TT).
• Maximum Lift Height: Up to 444 in (11,278 mm).
• Free Lift: Approximately 135 in (3,429 mm).

Dimensions & Maneuverability

• Overall Length (to fork face): 64.2 in (1,580 mm).
• Chassis Width: 35.5 in (902 mm).
• Turning Radius: 83.5 in (2,120 mm).
• Truck Length (including baselegs): 86.5 in (2,146 mm).
• Baseleg Width: 6.0 in (152 mm).
• Standard Fork Size: 1.75 x 4 x 42 in (44 x 102 x 1,067 mm).

Performance Data

• Travel Speed (No Load): 8.0 mph (12.9 km/h)
• Gradability: 5%.
• Braking: Regenerative braking is typical for this series to extend battery life.

Tires:

• Drive Tire: 13.5 x 6 in (Soft Poly).
• Steered Idler: 8 x 4 in (Hard Poly).
• Load Wheels: 6 x 4 in (Hard Poly, Quantity of 4).

Key Technical Features

• ACR System: Utilizes AC motors for both traction and lift, providing smoother control and reduced maintenance compared to DC systems.
• Steered Idler: Automatically aligns the idler wheel with the drive tire to maintain traction and prevent “caster snap” when reversing from high elevations.
• Open View Mast: Designed to improve visibility of the baselegs and the load while working at height.
• Battery Compartment: Standard usable width is 18.12 in (460 mm); however, lift heights exceeding 400 inches typically require the larger 21.12 in (536 mm) compartment.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
