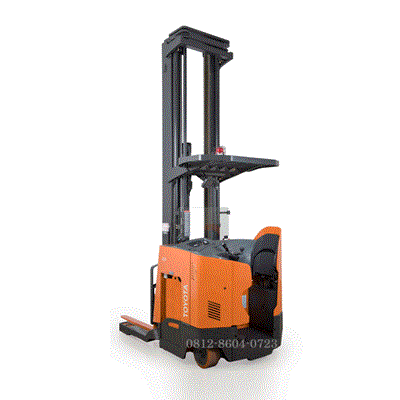

Toyota Forklift 7730-DR32TT | 1.4 ton

Description

Toyota Forklift 7730-DR32TT | 1.4 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 7730-DR32TT | 1.4 ton

Below are the key specifications for the Toyota Reach Truck Double Deep (7000 Series), model 7730-DR32TT, with a capacity of 1.4 tons (1,451 kg / 3,200 lbs):

General Specifications & Performance

• Brand / Manufacturer: Toyota Material Handling (also frequently marketed under the Raymond/BT network)
• Model: 7730-DR32TT
• Unit Type: Double-Deep Reach Truck (Capable of accessing two rows of pallets within a single racking bay using a dual-pantograph mechanism).
• Maximum Lifting Capacity: 1,451 kg (3,200 lbs) at a 24-inch (600 mm) load center.
• Power Source: Electric / 36-Volt Battery.
• Maximum Travel Speed: ± 12 – 12.8 km/h (unloaded).

Mast & Lifting Capabilities

• Mast Type: 3-Stage Mast (TT / Triplex) with Full Free Lift.
• Maximum Lift Height: Configurable from 11,278 mm (11.2 meters) up to a maximum of 13,766 mm (13.7 meters), depending on the specific configuration ordered.
• Additional Mast Features: Equipped with a double-deep pantograph mechanism and a sideshift function (allowing the forks to shift laterally for precise positioning).

Dimensions & Physical Design

• Operator Position: Sit / Stand-up (Flexible design, featuring a flip-down seat that allows the operator to sit during longer travel distances or stand while operating in narrow aisles). Power Unit Width: 49.5 inches (1,257 mm)
• Unit Length (Truck Head Length with Sideshift): ± 71.8 inches (1,823 mm)
• Turning Radius: ± 87.5 inches (2,222 mm)—highly agile for maneuvering within narrow warehouse aisles.
• Standard Fork Dimensions: 42 x 4 x 1.5 inches (1,067 x 102 x 38 mm).

Wheels & Braking System

• Drive Tire: 1 Soft Poly tire (Size: 13.5 x 6 inches / 343 x 152 mm).
• Steered Idler Tire: 1 Hard Poly tire (Size: 8 x 4 inches / 203 x 102 mm).
• Load Wheels: 4 Hard Poly wheels (Size: 5 x 3.62 inches / 127 x 92 mm).
• Braking System: Features Regenerative Braking & Lowering technology, which recovers up to 10% of energy back to the battery during load lowering or braking.

Key Advantages of This Model

• Double Deep Reach: Ideal for increasing storage capacity in multi-level warehouses by allowing pallets to be placed in a second (deeper) row.
• ACR System™: Toyota’s AC motor system, which delivers rapid acceleration, smooth movement, and improved battery efficiency for longer operation.
• Superior Ergonomics: Equipped with a multifunctional color touchscreen display and an “open view” mast, ensuring maximum visibility and safety for the operator.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
