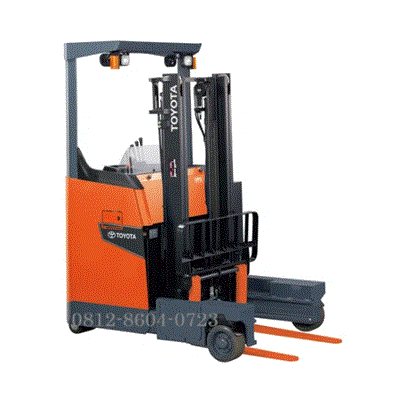

Toyota Forklift 8FBS10 | 1 ton

Description

Toyota Forklift 8FBS10 | 1 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 8FBS10 | 1 ton

Berikut adalah spesifikasi teknis lengkap untuk unit Toyota Forklift / Reach Truck 8FBS10 kapasitas 1 Ton (4-Way Electric Powered Reach Truck):

Spesifikasi Utama Toyota Forklift 8FBS10 | 1 ton

Manufaktur: TOYOTA.
Model: 8FBS10 (Seri 8).
Jenis Unit: Electric Powered 4-Way Reach Truck.
Posisi Operator: Stand-On (Berdiri).
Kapasitas Muat (Load Capacity): 1.000 kg (1 Ton).
Pusat Beban (Load Center): 500 mm.
Jenis Ban (Tire Type): Rubber / Karet (Front & Rear).

Dimensi & Berat (Dimensions & Weight)

Panjang Keseluruhan (Overall Length ke Ujung Garpu): 1.820 mm.
Panjang ke Muka Garpu (Length to Fork Face): 1.050 mm.
Lebar Keseluruhan (Overall Width): 1.240 mm.
Lebar Frame (Frame Width): 1.090 mm.
>Tinggi Overhead Guard (Pelindung Kepala): 2.250 mm.
>Tinggi Tiang Turun (Mast Lowered Height): 1.995 mm (untuk tipe standar mast MFH 3000).
>Tinggi Tiang Naik Maksimum (Mast Extended Height): 3.885 mm (untuk tipe standar mast MFH 3000).
Jarak Jangkau Garpu (Reach Stroke): 440 mm.
Ukuran Garpu (T x W x L): 30 mm x 100 mm x 770 mm.
Total Berat Kosong (dengan Baterai Minimal): 2.050 kg.

Kemampuan Manuver & Operasional (Maneuverability)

Radius Putar (Turning Radius – 360° Rotation Mode): 1.185 mm.
Radius Putar (Reach Mode): 1.340 mm.
Lebar Koridor Minimum (Right Angle Turn Mode): 1.525 mm.
Lebar Koridor untuk Stacking (Palet 1100×1100): 2.350 mm (360° Rotation Mode + clearance 200 mm).
Mode Pergerakan (4-Way Travel System): Reach Mode, Sideways Travel Mode (Jalan Menyamping), Parallel Travel Mode, dan Right Angle Turn Mode.

Performa (Performance) Toyota Forklift 8FBS10 | 1 ton

Kecepatan Jalan (Travel Speed):
Dengan Beban: 9.5 km/jam.
Tanpa Beban: 10.5 km/jam.

Kecepatan Angkat (Lifting Speed):
Dengan Beban: 350 mm/detik.
Tanpa Beban: 560 mm/detik.

Kecepatan Menurunkan (Lowering Speed):
Dengan Beban: 500 mm/detik.
Tanpa Beban: 550 mm/detik.
Gradeability (Kemampuan Menanjak – Rating 5 Menit): 19% dengan beban / 32% tanpa beban.

Spesifikasi Ban (Tires Size)

Jumlah Roda: 2 Depan / 1 Drive + 2 Caster (Belakang).
>Ukuran Ban Depan: 254 x 120 mm.
>Ukuran Ban Belakang (Drive): 334 x 145 mm.
>Ukuran Ban Belakang (Caster): 150 x 80 mm.

Sistem Elektrikal, Baterai & Motor (Electrical & Motors)

Voltase / Kapasitas Baterai (STD 5-hour rating): 48 V / 201 Ah (Opsi Max hingga 240 Ah).
Berat Baterai Minimal: 355 kg.
>Motor Penggerak (Drive Motor): 4.9 kW (Sistem AC Inverter).
>Motor Hidrolik (Load Handling Motor): 8.0 kW (Sistem AC Inverter).
>Motor Power Steering: 0.26 kW (Sistem DC Chopper).

Fitur Unggulan Tambahan

4-Way Movement: Sangat efisien untuk pergudangan dengan lorong yang sangat sempit (narrow aisle) dan ideal untuk membawa material yang panjang (seperti pipa atau besi) secara menyamping tanpa perlu memutar unit.
Automatic Turn-Speed Control: Menyesuaikan kecepatan saat berbelok secara otomatis berdasarkan tinggi angkatan dan berat beban demi menjaga stabilitas unit.
generative Braking: Mengisi kembali daya baterai saat forklift melakukan pengereman atau saat menurunkan beban, sehingga memperpanjang durasi operasional unit.



Identification Toyota Forklift 8FBS10 | 1 ton

Model : 8FBS10
Operation Position : Stand-up
Load Capacity : 1000 kg
Load Center : 500 mm
Overall Width A : 1040 mm
Turning Radius (Outside) B : 1340 mm
Overhead Guard Height : 2250 mm
Length to Fork Face : 1050 mm
Voltage/Capacity (5-hour ratings) Min(Max) : 48/201 (48/240) V/AH
Electric Motors Drive/Load handling/Power Steering : 4.9 /8/0.26 kw

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load.

This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
