Toyota Forklift 8FBS13 | 1.3 ton

Description

Toyota Forklift 8FBS13 | 1.3 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 8FBS13 | 1.3 ton

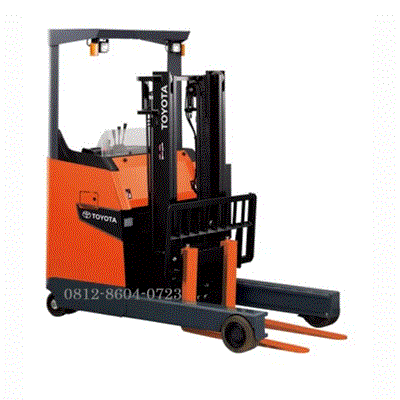

The Toyota 8FBS13 is a specialized electric stand-up reach truck, part of the Toyota 8-Series. While commonly referred to within the “1.3 ton” category, its actual rated load capacity is 1,250 kg.
This model is particularly notable for its 4-way movement capability, allowing it to travel sideways, which is ideal for handling long loads in extremely narrow aisles.

Core Specifications Toyota Forklift 8FBS13 | 1.3 ton

Model 8FBS13.
Load Capacity 1,250 kg (1.25 Tons).
Load Center 500 mm.
Power Source 48V Battery (Lead-acid or Li-ion options).
Operator Position Stand-up.
Turning Radius 1,185 mm (Minimal for tight spaces).
Overall Width 1,240 mm.
Travel Speed 10.5 km/h (No load) to 14 km/h (Max).

Key Performance Features

4-Way Movement: It can switch between standard travel, sideways travel, 360° rotation, and parallel travel. This allows for lateral movement of long items (like timber or pipes) without needing wide aisles.

Space Efficiency: The 360° rotation mode brings the turning center closer to the middle of the vehicle, significantly reducing the required operating space compared to standard counterbalance forklifts.

Automatic Turn-Speed Control: A safety feature that automatically adjusts turning speed based on lift height and load weight to maintain stability.

Advanced AC System: Equipped with efficient AC motors for drive and load handling, which recover energy during braking to extend battery life.

Motor & Battery Details

Drive Motor: 4.9 kW
Load Handling Motor: 8.0 kW
Power Steering Motor: 0.26 kW
Battery Capacity: Ranges from 280 Ah (Min) to 370 Ah (Max) depending on the configuration.

Dimensions (Standard Configuration)

Length to Fork Face: 1,050 mm
Overhead Guard Height: 2,250 mm
Aisle Width: Optimized for narrow warehouse environments where traditional forklifts cannot maneuver.
For a detailed breakdown of mast options and specific lift heights available for your region, you can refer to the official Toyota 8FBS Series Data Sheet

Identification Toyota Forklift 8FBS13 | 1.3 ton

Model : 8FBS13
Operation Position : Stand-up
Load Capacity : 1300 kg
Load Center : 500 mm
Overall Width A : 1040 mm
Turning Radius (Outside) B : 1340 mm
Overhead Guard Height : 2250 mm
Length to Fork Face : 1050 mm
Voltage/Capacity (5-hour ratings) Min(Max) : 48/201 (48/240) V/AH
Electric Motors Drive/Load handling/Power Steering : 4.9 /8/0.26 kw

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load.

This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
