Toyota Forklift 8RFBAS12 | 1.2 ton

Description

Toyota Forklift 8RFBAS12 | 1.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 8RFBAS12 | 1.2 ton

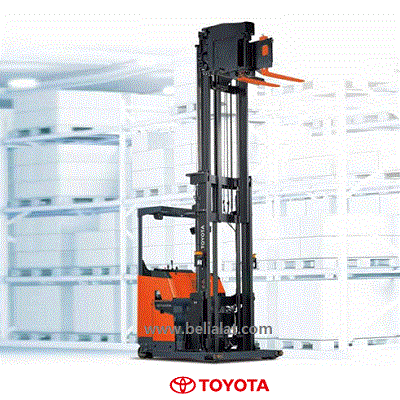

The Toyota 8RFBAS12 is a 1.2-ton Very Narrow Aisle (VNA) high-mast reach truck designed specifically for high-density warehouse environments.
It allows for pallet handling in three directions—front, left, and right—without the vehicle needing to turn.

Key Specifications

Category /Specification /Detail
Performance /Load Capacity /1,200 kg (1.2 Ton).
Load Center 550 mm.
Max Lift Height Up to 7,500 mm (High-Mast Type).
Travel Speed (No Load) 9.5 km/h.
Dimensions Overall Width (A) 1,550 mm (Pallet type 1100) / 1,650 mm (Pallet type 1200).
Overall Length (C) 2,900 mm.
Turning Radius (B) 1,910 mm.
Stacking Aisle Width 1,580 mm – 1,680 mm (Depending on pallet size).
Mast Lowered Height 2,795 mm
Electric System Voltage / Capacity 48V / 390Ah (Min) to 445Ah (Max).
Drive Motor 5.2 kW (AC).
Load Handling Motor 11.0 kW (AC)
Operation Operator Position Stand-up.
Tire Type Urethane (Front) / Rubber (Rear).

Functional Features

3-Way Load Handling: Equipped with a rotating fork carriage, allowing the operator to stack and retrieve loads from either side of a narrow aisle.
High-Mast Stability: The “S” in the model name often denotes the High-Mast variant, which is optimized for stability at higher lift heights compared to the standard 8RFBA12.
Regenerative Systems: Features both load-handling and brake regenerative systems to return energy to the battery, extending operating time.
Safety Features: Includes shockless fork landing to protect fragile goods and an advanced multifunction display for real-time monitoring of truck vitals.

Application Suitability

This unit is best suited for indoor warehouse operations with high racking systems where maximizing floor space is a priority. Because it operates in aisles as narrow as 1.6 meters, it can significantly increase storage capacity compared to standard reach trucks or counterbalance forklifts.

Specifications Toyota Forklift 8RFBAS12 | 1.2 ton

Model : Toyota Forklift 8RFBAS12
Position Operation up-Stand
Capacity Load : 1200 kg
Center Load : 550 mm
Overall Width ( Pallet type 1,200  / 1,100 ) A : 1,450/1,550 mm
(Outside (Radius Turning B : 1600 mm
*Height Lowered Mast : 3045 mm
Overal Length : 2900 mm

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter.

Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, before mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse.
The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances
comfort by offering easy horn operation while traveling in reverse
