Toyota Forklift 9700-CSR30T | 1.3 ton

Description

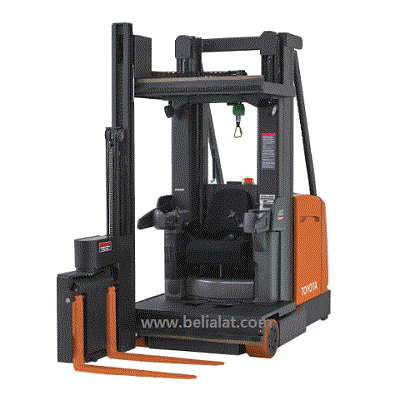

Toyota Forklift 9700-CSR30T | 1.3 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 9700-CSR30T | 1.3 ton

The Toyota 9700-CSR30T (also branded as Raymond 9700-CSR30T due to Toyota Material Handling’s ownership of Raymond) is a high-performance Swing-Reach / Turret Truck designed for Very Narrow Aisle (VNA) warehouse environments.
Here are the technical specifications for this 1.3-ton (3,000 lbs) capacity unit:

Core Specifications Toyota Forklift 9700-CSR30T | 1.3 ton

• Model Series: 9700 Series (Swing-Reach).
• Load Capacity: 1,361 kg (3,000 lbs) at a 600 mm (24-inch) load center.
• Power System: 48-Volt Electric.
• Mast Type: 2-Stage Mast (standard configuration).
• Maximum Elevated Height: Up to 13,056 mm (approx. 514 inches / 42.8 feet).
• Operation Type: Man-up turret truck (the operator rises with the load for better visibility).

Performance Data

• Travel Speed: 9.6 km/h (6.0 mph) both loaded and unloaded.
• Lift Speed: * Loaded: 0.37 m/s (73 fpm).
• Unloaded: 0.43 m/s (85 fpm).
• Lowering Speed: 0.41 m/s (81 fpm) both loaded and unloaded.
• Aisle Requirements: Can operate in aisles as narrow as 1,676 mm (66 inches) depending on load size.

Dimensions & Weight

• Truck Weight (excluding battery): Approximately 6,500 kg – 8,000 kg (varies by mast height).
• Battery Compartment Width: 603 mm (23.75 inches).
• Max Battery Weight: 1,588 kg (3,500 lbs).
• Standard Fork Dimensions: 1,067 x 102 x 45 mm (42 x 4 x 1.75 inches).
• Step Height: 406 mm (16 inches) for easy entry.

Key Features

• Swing-Reach Articulation: The forks can rotate 180 degrees, allowing the truck to pick from either side of a narrow aisle without turning the entire vehicle.
• Regenerative Lowering: Returns energy to the battery while lowering the load, extending run times by approximately 11%.
• Wire Guidance Compatibility: Can be equipped with “Intelliguide” to automatically steer the truck while locked onto a wire in the warehouse floor.
• Open View Mast: Twin tubular design for unobstructed visibility during high-elevation tasks.

Usage Context

This unit is specifically engineered for high-bay distribution centers and e-commerce fulfillment where maximizing storage density is the priority. It allows for “Man-Up” order picking and full pallet handling in aisles where a standard counterbalance or reach truck cannot fit.

Specifications Toyota Forklift 9700-CSR30T | 1.3 ton

• Manufacturer : Toyota Very Narror Aisle (VNA)
• Model : 9700-CSR30T
• Operation Position : Syand Up
• Load Capacity : 1361 kg
• Lift Height : 10008 mm
• Usage Intensity : Medium-High
• Transport Distance : Medium
• Suitable Areas : Warehouses
• Operator Position : Standing
• Travel Speed, no load : 8.7 km/h
• Free Lift : 3226 mm
• Power Type : Lead acid

Standard Equipment

• Available Options
• 3-Wheel Suspension System.
• 3 Year/3,000 Hour Extended Warranty.
• 48-Volt Power Unit.

ACR System

• AC-Traction and Lift System.
• Auto Center Nest.

Auto Traverse and Rotate.

• Automatic Speed Reduction When Carriage Not TravelReady.
• Automatic Steer Center on Power-Up.
• Battery Compartment Width 21 in. (9600-CSR30T).

Maximum Usable Dimensions

• Battery Compartment Width 23.75 in. (9700-CSR30T).
• (Maximum Usable Dimensions).
• Battery Gates, Adjustable Retainers.

Battery Rollers.

• Battery State-of-Charge (BSOC) with Lift Interrupt.
• Configurable Performance Parameters.
• Controls, Ergonomic Handle Design.
• Deadman, Dual.

Ergonomic Seat.

• Fall Protection System: Body Belt or Full Body.
• Harness and Tether.
• Fan Package.
• Flip-up Sidegates and Control Arms.

Height Indicator

• Hour Meters (HD, HL, TM, KH, HA, HT).
• intellispeed™ Control System.
• LED Compartment, and Work Lights.
• Lift System, High Performance.

Mast, Clear-View

• Mast, Twin Tubular Design.
• Non-skid Operator’s Platform.
• Operator’s Position (Sit/Stand/Lean).
• OSHA and ANSI/ITSDF Compliance.
• Parking Brake, Automatic Engaging.
• Power-up and run time diagnostics real time.

status/fault codes

• Raymond® Red Finish with Black Mast.
• Regenerative Braking.
• Regenerative Lowering.
• Separate Lift, Travel, and Steer Motors.
• Slack Chain Switches.

Steering, Power

• Storage Tote.
• UL Type “E” Construction.
• Vehicle Navigation Assistant.
• Weight Sensing.
• Work Lights and Fan.

Alternate Personal Fall Protection System

• Full Front Barriers and 3-Bar Side-gates.
• Audible Alarms.
• Barriers, Pallet Handling.
• Cold Storage Conditioning.
• Enclosure for Cold Storage Conditioning.

End of Aisle Slowdown

• Extended Turrets.
• Keyless On/Off.
• Lift and Lower Limit Switches.

Lights

• Operator’s Clipboard.
• UL Type “EE” Construction.
• Wire Guidancerue Potential.



The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
