Toyota Forklift C3E150RII | 1.5 ton

Description

Toyota Forklift C3E150RII | 1.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C3E150RII | 1.5 ton

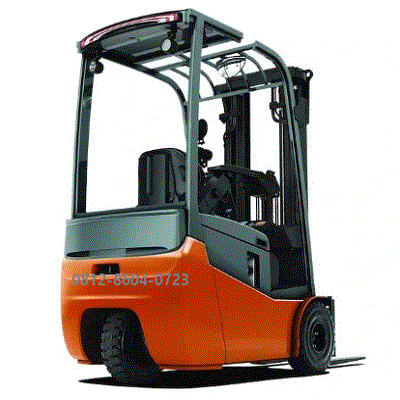

The Toyota C3E150RII (also known as part of the BT Cargo E2 series) is a compact, 3-wheel electric counterbalance forklift designed for indoor warehouse applications and confined spaces.
Below are the technical specifications for the 1.5-ton unit:

Performance & Capacity

Load Capacity: 1,500 kg (1.5 tons).
Load Center: 500 mm.
Travel Speed (Full/No Load): 12.0 / 12.5 km/h.
Lift Speed (Full/No Load): 0.31 / 0.52 m/s.
Lowering Speed (Full/No Load): 0.59 / 0.50 m/s.
Max Gradeability (Full/No Load): 16% / 25%.

Dimensions

Overall Length (to face of forks): 1,750 mm.
Overall Width: 990 mm.
Overhead Guard Height: 2,055 mm.
Turning Radius (Wa): 1,420 mm.
Aisle Width (Pallet 1000×1200 crossways): 3,079 mm.
Wheelbase: 1,146 mm.
Ground Clearance (Lowest point with load): 90 mm.

Mast Options (Standard V-Mast)

Standard Lift Height: 3,270 mm (typical configurations vary from 3.0m to over 6.0m).
Height, Mast Lowered: 2,140 mm.
Height, Mast Extended: 3,820 mm.
Free Lift: 80 mm (standard mast).

Electrical & Drive System

Drive Unit: 24V Electric.
Drive Motor Rating: 6.0 kW (AC Motor).
Lift Motor Rating: 11.0 kW.
Battery Capacity: 24V / 735–875 Ah (options vary).
Controller Type: Inverter MOSFET.

Chassis & Wheels

Tires: Super Elastic (SE) / Solid Rubber.
Tire Size (Front/Rear): 18×7-8 / 18×7-8.
Service Weight (with battery): Approx. 2,907 kg.
Brakes: Hydraulic (Service) / Mechanical (Parking).

Key Features

Compact Design: Rear-wheel drive and a 3-wheel configuration allow for an extremely tight turning radius, suitable for working inside containers or narrow aisles.
Operator Comfort: Features a low step-in height, adjustable seat, and intuitive dashboard display.
Safety: Includes the Toyota System of Active Stability (SAS) and Operator Presence Sensing (OPS) to prevent tip-overs and accidental movement

Main Specification, Toyota Forklift C3E150RII | 1.5 ton

Model : C3E150RII
Load Capacity : 1500 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm
