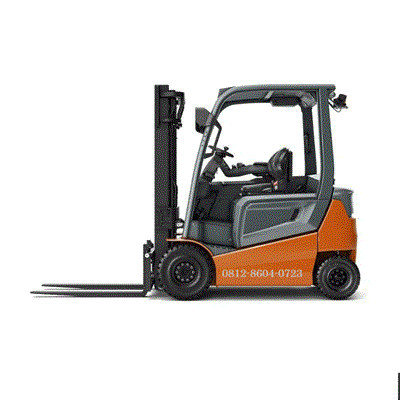

Toyota Forklift C6E300VLII | 3 ton

Description

Toyota Forklift C6E300VLII | 3 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C6E300VLII | 3 ton

Here are the technical specifications for the Toyota BT Cargo E8-Series 4-Wheel Electric Forklift (Model: C6E300VLII / 3 Ton):

General Specifications & Performance

• Manufacturer / Series: Toyota / BT Cargo E8-Series

• Model Code: C6E300VLII

• Power Type: Electric (Battery Powered)

• Operator Type: Seated

• Wheel Configuration: 4-Wheel Counterbalance

• Rated Load Capacity: 3,000 kg (3 Ton)

• Load Center Distance (c): 500 mm

• Travel Speed (Unladen): Up to 16 km/h

Electrical & Battery System

• System Nominal Voltage: 80 V

• Standard Battery Capacity (K_5): 80V / 560 Ah

• Drive & Lift Motors: High-efficiency AC Motors

• Features: Intelligent energy management, battery discharge indicator, regenerative braking system.

Operational Features & Chassis

• Chassis Design: Standard/Long wheel configuration for high stability and indoor/outdoor versatile operation.

• Safety & Ergonomics:

  • Ergonomic driver compartment with comfortable seating

  • Clear-view mast for optimal forward visibility

  • Low noise and zero-emission operation

• Suitable Applications: Manufacturing, Warehouses, Logistics, Supermarkets, and Outdoor Loading Areas.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
