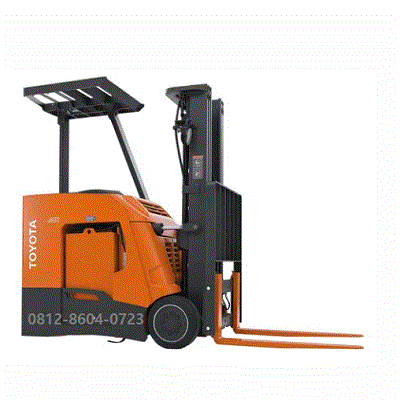

Toyota Forklift CB4250-C35 | 1.5 ton

Description

Toyota Forklift CB4250-C35 | 1.5 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift CB4250-C35 | 1.5 ton

Main Specification, Toyota Forklift CB4250-C35 | 1.5 ton

The Toyota CB4250-C35 is a stand-up counterbalanced electric forklift belonging to the 4250 series (often categorized under the 4000 series in certain markets).
It is designed for high-performance indoor material handling, particularly in narrow aisles and docks.
Below are the technical specifications for this unit:

Core Performance & Capacity

• Load Capacity: 3,500 lbs (approximately 1,588 kg).
• Load Center: 24 inches (600 mm).
• Power Source: 36V or 48V Electric Battery.
• Operator Type: Stand-up / Rider Seated (Stand-up configuration).
• Drive Control: AC Drive System with MOSFET Transistor.

Dimensions & Maneuverability

• Overall Width: ~42.5 inches (1,080 mm).
• Length to Fork Face: ~70–75 inches (varies by battery compartment size).
• Overhead Guard Height: ~88 inches (2,235 mm).
• Turning Radius (Outside): Approximately 62–65 inches, making it ideal for tight warehouse transitions.
• Right-Angle Stack Aisle: ~125–130 inches (depending on pallet size)

Mast & Lifting Data

• Standard Lift Height: Commonly equipped with a 3-stage (FSV) mast reaching up to 189 inches (4,800 mm), though options vary.
• Mast Lowered Height: ~83–85 inches (standard)
• Tilt Range: 5 degrees forward / 5 degrees backward (standard)

Key Features

• System of Active Stability (SAS): Toyota’s proprietary technology that monitors forklift operations to reduce the risk of tip-overs by locking the rear axle or controlling mast angle.
• ComfortStance™ Suspension: An innovative floor-mat and suspension design that isolates the operator from impacts and vibrations.
• Multifunction Control Handle: A single-axis handle that allows the operator to control travel, lift, lower, tilt, and side-shift with one hand.
• Regenerative Braking: Captures energy during plugging, coasting, and braking to extend battery life throughout the shift.
• Operator Presence Sensing System (OPSS): Disables hydraulic and travel functions if the operator is not properly positioned in the compartment.

Typical Applications

• This unit is specifically engineered for:
• Dock Work: Fast entry/exit from trailers.
• General Warehousing: Moving goods in narrow aisles where a sit-down forklift would be too bulky.
• Food & Beverage: Often used in cold storage environments (with optional protection packages).

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
