Toyota Forklift RRE160HN | 1.6 ton

Description

Toyota Forklift RRE160HN | 1.6 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift RRE160HN | 1.6 ton

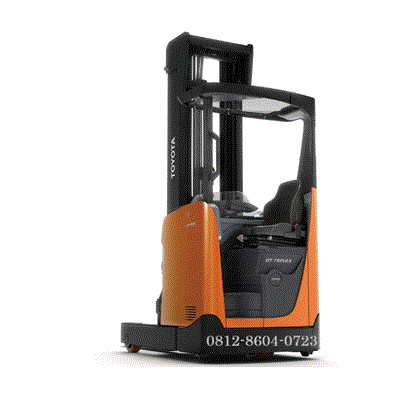

The Toyota BT Reflex RRE160HN is a narrow-chassis reach truck designed for high-performance stacking in confined spaces such as block stacking or drive-in racking.

Core Specifications

• Load Capacity: 1,600 kg (1.6 ton).
• Load Center: 600 mm.
• Chassis Width: 1,120 mm (Narrow chassis).
• Maximum Lift Height: Up to 10,000 mm (10 meters).
• Travel Speed: 10.0 km/h (with load) / 11.0 km/h (without load).
• Battery Voltage: 48 V.
• Battery Capacity: 310 Ah to 620 Ah (options for Lead-Acid or Lithium-ion).

Dimensions & Weights

• Overall Width (b1): 1,120 mm.
• Overall Length (l1): ~2,413 mm.
• Turning Radius (Wa): 1,604 mm.
• Aisle Width (Ast): ~2,695 mm (for 1000×1200 pallets crossways).
• Service Weight: Approx. 2,635 kg to 3,190 kg (depending on battery and mast configuration).
• Wheelbase: 1,342 mm.

Performance Data

• Lift Speed: 0.36 m/s (with load) / 0.68 m/s (without load).
• Lowering Speed: 0.55 m/s (with load) / 0.59 m/s (without load).
• Drive Motor Rating: 9.0 kW.
• Lift Motor Rating: 11.0 kW.
• Gradeability: 10% (with load) / 15% (without load).

Key Features

• Totalview Concept: Transparent overhead guard and clear-view mast for improved visibility and safety at height.
• Ergonomic Cabin: Features a fully adjustable seat, pedals, and a touchscreen interface for monitoring performance and diagnostics.
• Optimised Truck Performance (OTP): Includes automatic cornering control and reach/speed control based on mast height and load.
• Cold Store Option: Can be equipped with a heated cabin for operations in environments as low as -30°C.
• 360° Steering: Progressive electronic steering for smooth and precise maneuvering in tight aisles.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
