Toyota Forklift VRE125 | 1.2 ton

Description

Toyota Forklift VRE125 | 1.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift VRE125 | 1.2 ton

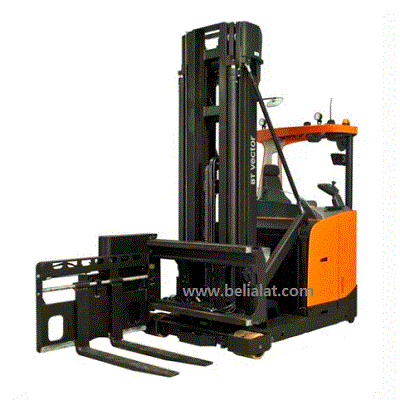

The Toyota BT Vector VRE125 is a “man-down” Very Narrow Aisle (VNA) truck designed for high-density warehouse storage.
It is built on the BT Reflex reach truck platform and is optimized for medium-intensity operations.
Below are the technical specifications for the standard VRE125 model:

Core Performance & Capacity

• Load Capacity: 1,250 kg (1.25 ton).
• Load Center: 600 mm.
• Maximum Lift Height: Up to 6,700 mm (Standard Duplex/Triplex options available).
• Travel Speed: 10 km/h (with load) / 12 km/h (without load).
• Lift Speed: 0.29 m/s (with load) / 0.37 m/s (without load).
• Lowering Speed: 0.50 m/s (with load) / 0.48 m/s (without load).

Dimensions & Maneuverability

• Overall Length (to fork face): 2,955 mm.
• Overall Width: 1,270 mm / 1,420 mm (depending on chassis version).
• Turning Radius: 1,954 mm.
• Minimum Aisle Width (Ast): 1,660 mm (for 800×1200 pallets lengthways).
• Wheelbase: 1,692 mm.
• Ground Clearance: 70 mm (below mast) / 60 mm (center of wheelbase).

Electrical System

• Drive Motor: 7.5 kW (AC Variable Control).
• Lift Motor: 11.0 kW.
• Battery Voltage: 48V.
• Battery Capacity: 620 Ah to 930 Ah.

Key Features

• Turret Head: Allows for 180-degree rotation of the forks to handle pallets on either side of the aisle without turning the truck.
• Transitional Lift Control (TLC): Provides completely smooth, shock-free lifting and lowering, even at maximum speeds.
• Guidance Systems: Designed for either wire or rail guidance for safe, high-speed operation in narrow aisles.
• Steering: 360° progressive steering for enhanced maneuverability.
• Safety: Features the BT Optipace system, which automatically optimizes travel and handling speeds based on lift height and load weight.
• Note: For specialized high-lift requirements, the related VRE125SF model (Shuttle Fork version) can reach lift heights up to 11,300 mm.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
