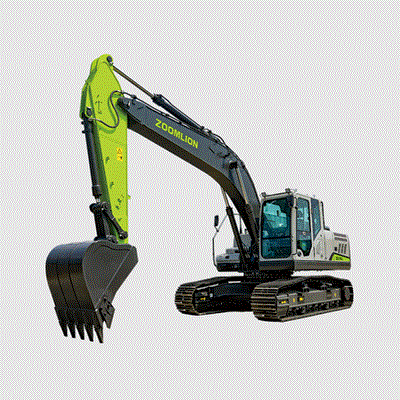

Zoomlion Excavator ZE135GF | 16.5 ton

Description

Zoomlion Excavator ZE135GF | 16.5 ton

Specification Unit

Operating weight : 16500 kg
Engine power : 194 kW @ 2200 rpm
Std. Bucket capacity : 1.6 m³
Travel speed(High) : 5.5 km/h
Travel speed(Low) : 3.0 km/h
Maximum swing speed : 10.3 rpm
Arm breakout force : 137 kN
Arm breakout force Power boost : 149 kN
Bucket breakout force : 187 kN
Bucket breakout force Power boost : 203 kN
Shipping length : 10650 mm
Shipping width : 3190 mm
Shipping height : 3525 mm
Track shoe width (std) : 600 mm
Boom : 6200 mm
Arm : 3050 mm
Digging reach : 10653 mm
Digging reach on ground : 10453 mm
Digging depth : 7300 mm
Vertical wall digging depth : 6216 mm
Cutting height : 10300 mm
Dumping height : 7265 mm
Minimum front swing radius : 4040 mm
Model : Cummins HM8.3
Emission : Stage II / Tier 2
System maximum flow : 2×266 L/min (2×70 gal/min)
System pressure : 34.3 MPa
