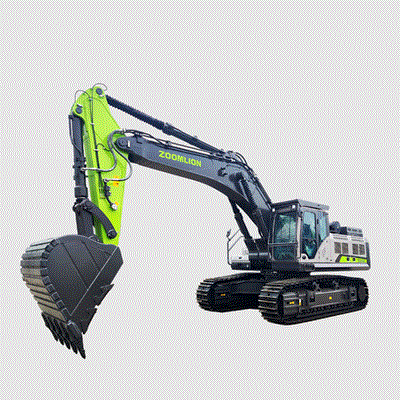

Zoomlion Excavator ZE500G | 51 ton

Description

Zoomlion Excavator ZE500G | 51 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Zoomlion Excavator ZE500G | 51 ton

Key Unit Specifications

General & Operating Weight

• Operating Weight: 51,000 kg (112,435.8 lbs / 51 Tonnes)

• Standard Bucket Capacity: 2.65 m³ (Range: 2.65 – 3.3 m³)

• Slewing Speed: ~9.0 – 9.5 rpm

Engine & Powertrain

• Engine Manufacturer: Cummins

• Engine Model: Cummins X12 / X12S3A375

• Displacement: 11.8 Liters

• Rated Output: 277 kW to 298 kW (approx. 371 HP – 400 HP @ 2,100 rpm)

• Emission Standard: Tier 3 / Stage III (market dependent)

Working Ranges (Operating Parameters)

• Maximum Digging Reach: 10,982 mm (10.98 m / 432.4 in)

• Maximum Digging Depth: 6,495 mm – 6,945 mm (6.5 m – 6.95 m)

• Maximum Digging Height: 9,685 mm – 9,690 mm (approx. 381 in)

• Maximum Dumping Height: 6,644 mm – 6,845 mm (6.64 m – 6.85 m)

• Max Drawbar Pull: 404 kN (90,822 lbf)

• Stick Digging Force: ~271 kN

Exterior & Transport Dimensions

• Overall Transport Length: ~11,690 mm (460.2 in)

• Overall Transport Width: 3,610 mm (142.1 in)

• Overall Transport Height: ~3,990 mm (157.1 in)

• Tail Slewing Radius: 3,787 mm (149.1 in)

• Track Length on Ground: 4,400 mm (173.2 in)

• Track Gauge: 2,750 mm (108.3 in)

Drive & Hydraulic Performance

• Travel Speed (High / Low): 5.0 km/h / 3.0 km/h (3.1 mph / 1.9 mph)

• Main Hydraulic System: Large-displacement dual main pumps with customized electro-hydraulic controls to improve fuel efficiency.
