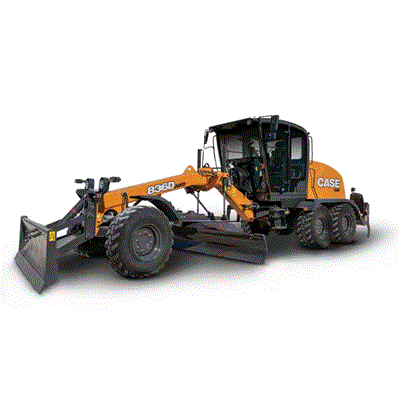

Case Motor Grader 836D | 12 ton

Description

Case Motor Grader 836D | 12 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Case Motor Grader 836D | 12 ton

Case Motor Grader 836D | 12 ton, Specifications unit

Power system

Therefore, { Model 6BTA5.9-C150- Ⅱ } | { Rated Power 112 kw } | { Rated Rotation Speed 2200 rpm } | { Peak Torque 655 Nm }

Dimension

{ Standard (without counterweight): L×W×H : 8765×2460×3310 mm } | { Front and Rear Axle Base 6154 mm } | { Middle and Rear Wheel Base 1538 mm } | { Peak Torque 655 } | { Clearance from Rear Axle to Ground 395 mm } | { Center Distance 1,517 mm } | { Height to Top of Cab A : 3310 mm } | { Height to Exhaust Pipe 2785 mm } | { Height to Top of Blade Lift Cylinder 2725 mm } | { Length – Front Axle to Moldboard 2500 mm } | { Wheel Base – between Front and Rear Axles 6154 mm } | { Wheel Base – between Middle and Rear Wheel 1538 mm } | { Length – Front Tire to Rear of Machine 8380 mm } | { Overall length – Standard / with Front Dozer Blade and Rear Ripper  8765 mm }.

{ Width – Rear Tire Center Lines 2100 mm } | { Width – Outside Front Tires 2310 mm } | { Ground Clearance at Rear Axle 395 mm }

Load specification

Therefore, { Standard (without counterweight) 13000 kg  }.

Operating Device Specification.

In other words, Length of Blade 3660 mm (12ft) (standard), Height of Blade 620 mm, Turning Angle 360°.

Max. Lift above Ground 420 mm, Max. Depth of Cut 630 mm, Blade Tip Range” 25-75°

Running specification

However, { Gears 6 Forward and 3 Reverse, Forward Speed 5/8/12/19/28/41 km/h.

Reverse Speed 5/12/28 km/h, Steering Angle of Front Wheel ±45 °, Tilt Angle of Front Wheel ±17 °.

Articulated Steering Angle ±25 °, Oscillation Angle of Front Axle ±16 ° ,  Model of tire 13.00-24(16PR)(standard)

Tank Capacity

Above all, Max. capacity of hydraulic oil tank 140 L, Max. capacity of fuel tank 350 L.
