Hangcha Towing Tractor HETT250 | 25 ton

Description

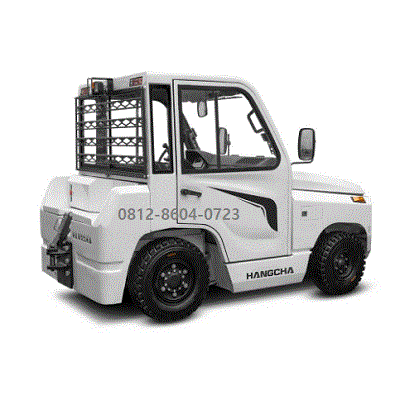

Hangcha Towing Tractor HETT250 | 25 ton

The Hangcha HETT250 (also commonly referred to under the model designation QSD25-C3/D3 or as part of the X Series) is a heavy-duty electric towing tractor designed for high-capacity industrial and airport applications.
It features a 25-ton towing capacity and is powered by an advanced AC electrical system.
Below are the detailed specifications and features for this unit:

Performance Specifications

Towing Capacity: 25,000 kg (25 tons) on dry, level concrete.
Drawbar Pull (Max): ~20,000 N to 21,000 N.
Drawbar Pull (Rated/1 Hour): 6,300 N.
Travel Speed (Laden/Unladen): ~10 km/h / 20–25 km/h.
Gradeability (Laden/Unladen): 5% / 30%.
Turning Radius: 2,825 mm to 3,500 mm (varies by wheelbase configuration).

Dimensions & Weight

Overall Length: 3,140 mm to 3,355 mm.
lass=”yoast-text-mark” />>Overall Width: 1,300 mm to 1,450 mm.
>Overall Height (with Cab): 1,760 mm to 2,250 mm.
Wheelbase: 1,490 mm to 1,850 mm.
Ground Clearance: 140 mm.
Service Weight (with Battery): ~3,750 kg to 4,530 kg.

Electrical System & Motor

Drive Motor: AC System, approximately 23 kW.
Battery Voltage: 80V.
Battery Capacity: Standard 500Ah to 630Ah (Lead-acid or Lithium-ion options).
Controller: High-frequency MOSFET (Full-AC) typically by Curtis or Danaher.
Charging: Supports rapid/opportunity charging for Lithium-ion models (full charge in approx. 2 hours).

Chassis & Braking

Steering: Full hydraulic power steering for low-effort maneuvering.
Service Brake: Hydraulic vacuum-assisted braking (all-wheel).
Parking Brake: Electronic Park Brake (EPB) or manual mechanical.
Tires: * Front: 6.50-10-10PR
Rear: 7.00-12-12PR (or 7.00-15-12PR on heavy-duty variants).

Key Features

Operator Comfort: Fully enclosed cab (optional), adjustable suspension seat, and ergonomic “inching” switches at the rear for easier coupling.
Regenerative Braking: Recovers energy during deceleration to extend battery life.
Safety: Emergency disconnect switch, automatic speed reduction on turns, and LED lighting (headlights/turn signals).
