Heli Forklift CPQYD60 | 6 ton

Description

Heli Forklift CPQYD60 | 6 ton

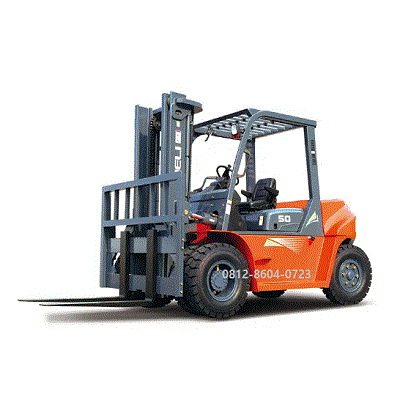

The Heli CPQYD60 is a heavy-duty, dual-fuel (Gasoline/LPG) forklift from Heli’s G-Series (or H2000 series depending on the region).
It is designed for high-capacity lifting while offering a cleaner alternative to traditional diesel units for indoor/outdoor use.
Below are the primary technical specifications for the 6-ton model:

General Performance

Rated Capacity: 6,000 kg (6 Ton).
Load Center: 600 mm.
Power Type: Dual Fuel (Gasoline / LPG).
Driving Mode: Sit-on / Rider-type.
Max. Travel Speed (Full Load): ~26 km/h.
Max. Lifting Speed (Full Load): ~370 mm/s.
Gradeability (Full Load): 20% – 26%.

Dimensions & Weight

Overall Length (without forks) 3,515 mm – 3,570 mm.
Overall Width 1,995 mm – 2,045 mm.
Overhead Guard Height 2,450 mm – 2,500 mm.
Turning Radius (Outside) 3,300 mm – 3,370 mm.
Standard Lift Height 3,000 mm (options up to 6m available).
Fork Dimensions (L×W×T) 1,220 × 150 × 60 mm.
Service Weight ~8,640 kg.

Engine & Drivetrain

The CPQYD60 often utilizes a high-performance 6-cylinder engine to manage the heavy load requirements.
Common Engine Model: PSI 4.3L / GM 4.3 (V6) or equivalent CY6102 series.
Rated Output: ~78 kW @ 2300 rpm
Rated Torque: ~324 Nm @ 1700 rpm
Transmission: Powershift / Automatic (usually 2 forward / 2 reverse speeds).
Tires: Pneumatic (Front: 8.25-15-14PR Dual / Rear: 8.25-15-14PR).

Key Features

Dual-Fuel System: Features a dual-cylinder LPG bracket for extended cruising range and automatic switching between tanks.
Hydraulic Efficiency: Uses load-sensing and dual-pump confluence technology to reduce fuel consumption while maintaining lifting speed.
Ergonomics: Widened mast for better visibility, suspension-mounted overhead guard to reduce vibration, and car-like pedal layouts.
Safety: Includes a mast lowering buffer and a safety valve in the hydraulic system to prevent cargo from dropping if a hose fails.
Note: Specs can vary slightly based on the “Series” (G-Series vs. H-Series) and the specific mast configuration (Duplex vs. Triplex) chosen.
