Heli Pallet Stacker CQDH20 | 2 ton

Description

Heli Pallet Stacker CQDH20 | 2 ton

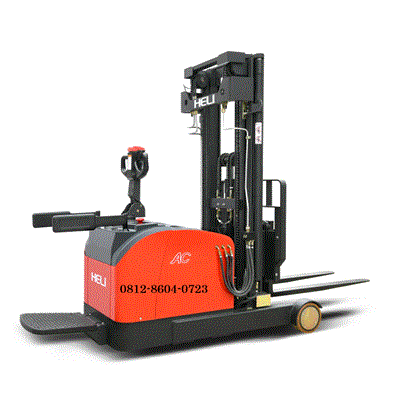

The Heli CQDH20 is a specialized 2-ton electric scissor reach stacker (often categorized as a “stand-on” or “walkie” reach truck).
Unlike standard stackers, the CQDH series features a pantograph (scissor) mechanism that allows the forks to extend forward, making it ideal for reaching into racking or handling double-deep pallets.
Below are the technical specifications for the 2.0-ton model.

Performance & Capacity

Rated Load Capacity: 2,000 kg (2.0 Ton).
Load Center: 600 mm.
Operating Type: Stand-on (Platform) or Walkie.
Travel Speed (Laden/Unladen): ~5.5 / 6.0 km/h.
Lift Speed (Laden/Unladen): ~130 / 230 mm/s.
Lowering Speed (Laden/Unladen): ~450 / 300 mm/s.
Gradeability (Laden/Unladen): 5% / 10%

Mast & Lifting

Standard Lift Height: 3,000 mm (Options available up to 5,500 mm).
Mast Type: Available in 2-stage (Standard) or 3-stage (Full Free Lift).
Reach Distance (Scissor Extension): ~500 mm to 600 mm (allows forks to extend beyond the support legs).
Fork Tilt: Usually 2° forward / 4° backward (standard on reach models)

Dimensions & Weight

Overall Length (to face of forks): ~2,400 mm – 2,550 mm (varies by mast).
Overall Width: ~1,000 mm – 1,100 mm.
Fork Dimensions: 40 x 122 x 1,150 mm (Standard).
Turning Radius: ~1,700 mm – 1,800 mm.
Service Weight (including battery): ~2,200 kg – 2,600 kg

Drive & Battery

Drive Motor: AC motor (typically 1.5 kW – 2.5 kW).
Lift Motor: DC or AC (typically 3.0 kW – 3.2 kW).
Controller: Curtis (USA) or Zapi (Italy) AC Controller.
Battery Voltage: 24V.
Battery Capacity: 270 Ah – 400 Ah (Lead-acid or Lithium-ion options)

Key Features

Scissor Reach Mechanism: Allows the unit to pick up pallets from the floor or racking even if there is a bottom beam or obstruction that prevents the support legs from entering.
Electronic Power Steering (EPS): Standard on the 2-ton model to ensure effortless maneuvering in tight warehouse aisles.
Safety Features: Automatic speed reduction during turns, emergency reverse “belly” button on the tiller head, and electromagnetic braking.
Proportional Hydraulics: Provides smooth lifting and lowering for fragile loads.
Note: Specifications can vary slightly based on the specific “Configuration Number” (e.g., CQDH20-GB2 vs. CQDH20-850). If you are looking at a specific unit for purchase, I recommend checking the manufacturer’s data plate on the chassis for the exact lift height and battery capacity installed.
