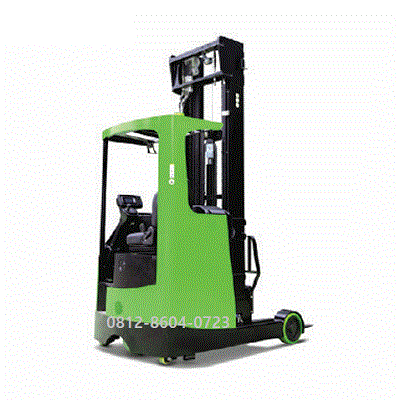

IMOW Forklift CQD16RV | 1.6 ton

The iMOW CQD16RV (often ordered as part of the CQD16-20RVF2 series from EP Equipment) is a high-performance electric sit-down reach truck engineered for narrow aisle warehousing, high-density storage, and high-intensity pallet handling.

The key specifications for the 1.6-ton (1,600 kg) capacity model are outlined below:

Key Performance Specifications

• Load Capacity: 1,600 kg (1.6 Ton)

• Load Center: 600 mm

• Power Type: Electric (AC Drive System)

• Operator Type: Sit-down / Seated

• Travel Speed (Loaded/Unloaded): 14 km/h / 15 km/h

• Lifting Speed (Loaded/Unloaded): 120 mm/s / 200 mm/s

• Turning Radius: 2,100 mm

Dimensions & Mast

• Standard Lifting Height: 3,000 mm (3 meters)

• Maximum Lifting Height: Up to 9,500 mm (varies depending on the configured triplex/dual mast options, with some configurations reaching up to 11,000 mm)

• Overall Length: 2,950 mm

• Overall Width: 1,180 mm

• Service Weight (Including Battery): Approximately 3,500 kg

Electrical & Battery System

• Battery Voltage: 48V

• Battery Capacity Options: Generally 400Ah or 500Ah (Lithium-ion or Lead-acid configurations available)

• Charging Time: 2.5 to 3 hours (with fast-charging Lithium systems)

• Braking System: Regenerative, electromagnetic braking

Key Features

• Narrow Aisle Design: Optimized for operating efficiently in tightly packed racking layouts.

• Operator Comfort: Features an ergonomic suspended seat and precise hydraulic steering with zero-turn capabilities.

• Advanced Diagnostics: Equipped with a full-color LCD dashboard display showing real-time metrics and system diagnostics.

• High Visibility: Includes 6,000K LED headlights and overhead work lights to improve safety when working at extreme heights.
