IMOW Pallet Mover KPL201H | 2 ton
IMOW Pallet Mover KPL201H | 2 ton
Performance Specifications
- Load Capacity (Q) 2,000 kg (2.0 Tons)
- Load Center Distance (c) 600 mm
- Travel Speed (Laden / Unladen) Up to 9.0 km/h / 12.0 km/h
- Lifting Speed (Laden / Unladen) 0.051 m/s / 0.060 m/s
- Lowering Speed (Laden / Unladen) 0.032 m/s / 0.039 m/s
- Max. Gradeability (Laden / Unladen) 6% / 16%
- Service Brake Electromagnetic
Description
IMOW Pallet Mover KPL201H | 2 ton
BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Mover KPL201H | 2 ton

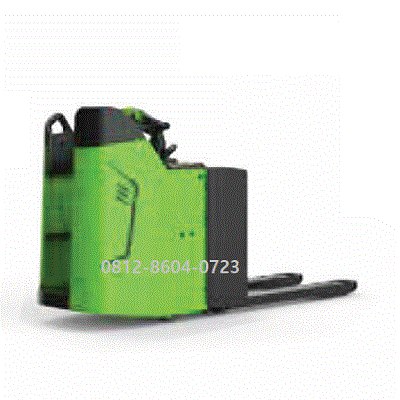

The iMOW / EP KPL201H (2 Ton) is a high-speed, heavy-duty ride-on electric pallet truck powered by lithium-ion technology. It is designed for long-distance transport and high-throughput warehouse environments.
Performance Specifications
| Parameter | Specification |
| Load Capacity (Q) | 2,000 kg (2.0 Tons) |
| Load Center Distance (c) | 600 mm |
| Travel Speed (Laden / Unladen) | Up to 9.0 km/h / 12.0 km/h |
| Lifting Speed (Laden / Unladen) | 0.051 m/s / 0.060 m/s |
| Lowering Speed (Laden / Unladen) | 0.032 m/s / 0.039 m/s |
| Max. Gradeability (Laden / Unladen) | 6% / 16% |
| Service Brake | Electromagnetic |
Weight & Basic Dimensions
| Parameter | Specification |
| Service Weight (with Battery) | ~705 kg – 765 kg |
| Overall Length (l_1) | 2,195 mm – 2,381 mm (depending on platform position) |
| Length to Face of Forks (l_2) | 1,234 mm |
| Overall Width (b_1) | 734 mm |
| Standard Fork Dimensions (s/e/l) | 55 mm × 170 mm × 1,150 mm |
| Fork Spread Width (b_5) | 685 mm (standard option) |
| Lift Height (h_3) | 120 mm – 125 mm |
| Lowered Fork Height (h_13) | 85 mm |
| Turning Radius (W_a) | 2,034 mm – 2,217 mm |
| Aisle Width (Pallet 1000×1200 crosswise) | ~3,017 mm |
Drive & Battery Electrical System
| Component | Specification |
| Battery Type | Lithium-Ion (Maintenance-Free) |
| Battery Voltage / Capacity | 24V / 205Ah (Fast Opportunity Charging) |
| Drive Motor (AC) | 1.6 kW – 2.5 kW High-Speed Controller |
| Lift Motor Rating | 2.2 kW |
| Steering Type | Electronic Power Steering (EPS) |
| Tyre Material | Polyurethane (PU) |
| Drive Wheel Size | 230 / 75 mm |
| Fork Roller Size | 85 / 70 mm |
Standard Key Features
-
Height-Adjustable Tiller: Features automatic center-positioning for ergonomic directional control.
-
Speed Management: Includes automatic cornering speed reduction to safeguard fast transfers.
-
Operator Comfort: Operator compartment with a suspended platform and side protection/safety guards.
