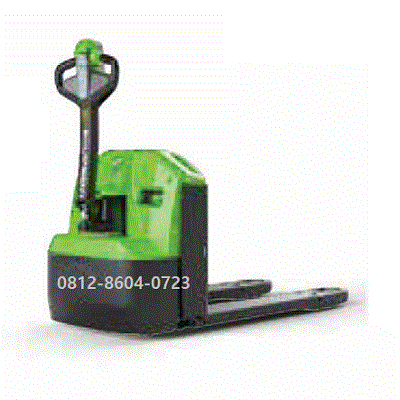

IMOW Pallet Mover WPL202 | 2 ton

Description

IMOW Pallet Mover WPL202 | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Mover WPL202 | 2 ton

The iMOW WPL202 (manufactured under EP Equipment group) is a heavy-duty, pedestrian electric pallet truck designed for high-maneuverability environments such as narrow warehouse aisles, retail backrooms, and delivery lorries.

Key Technical Specifications

General & Load Data

• Model: WPL202

• Drive Type: Fully Electric

• Operator Type: Pedestrian / Walkie

• Rated Capacity: 2,000 kg (2.0 Tons / ~4,400 lbs)

• Load Center Distance (c): 600 mm

• Service Weight (incl. battery): 320 kg

Dimensions & Maneuverability

• Length to Face of Forks (l_2): 470 mm (ultra-slim chassis design)

• Overall Length (l_1): 1,620 mm

• Overall Width (b_1/b_2): 714 mm

• Standard Fork Dimensions (s/e/l): 55 mm × 170 mm × 1,150 mm (optional lengths from 850 mm to 2,400 mm available)

• Width Across Forks (b_5): 540 mm (Standard) or 685 mm (Wide)

• Lift Height (h_3): 125 mm

• Lowered Fork Height (h_13): 88 mm

• Turning Radius (W_a): 1,320 mm

• Aisle Width requirement (A_{st}): 2,153 mm (for 1000×1200 mm crossways pallets)

Performance

• Travel Speed (Laden / Unladen): 5.5 km/h / 6.0 km/h

• Lifting Speed: 0.022 m/s

• Lowering Speed: 0.039 m/s

• Max Gradeability (Laden / Unladen): 10% / 16%

• Service Brake: Electromagnetic

Electrical System & Battery

• Drive Motor Rating (AC): 1.6 kW

• Lift Motor Rating: 0.8 kW

• Battery Type: Lithium-ion (Li-ion)

• Battery Voltage / Capacity: 24V / 100Ah

• Charger: Integrated 24V / 30A Charger (Supports fast opportunity charging)

• Battery Weight: ~44 kg

Wheels & Chassis

• Tire Type: Polyurethane (PU)

• Drive Wheel: varnothing 230 \times 75$ mm

• Load Wheels: varnothing 80 \times 85$ mm (Tandem)

• Stabilizer/Castor Wheels: Industrial floating castor wheels for stability on ramps and uneven ground

Highlights & Features

• Ultra-Slim Chassis: At just 470 mm to the fork face, it is exceptionally compact, making it easy to operate inside containers, delivery trucks, or cramped aisles.

• Maintenance-Free Lithium Power: Opportunity charging allows quick top-ups during breaks without harming cycle life.

• Cold Storage Option: Available with heating features and low-temp hydraulic fluids rated down to –20°C.
