IMOW Pallet Stacker ES06 | 0.6 ton
IMOW Pallet Stacker ES06 | 0.6 ton
Core Specifications
- Rated Load Capacity 0.6 Ton (600 kg / 1,320 lbs)
- Load Center 500 mm
- Operator Type Walkie / Pedestrian-operated
- Power Source Electric (AC Drive / 24V System)
- Design Type Counterbalance stacker (no straddle legs under forks)
Description
IMOW Pallet Stacker ES06 | 0.6 ton
BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Stacker ES06 | 0.6 ton

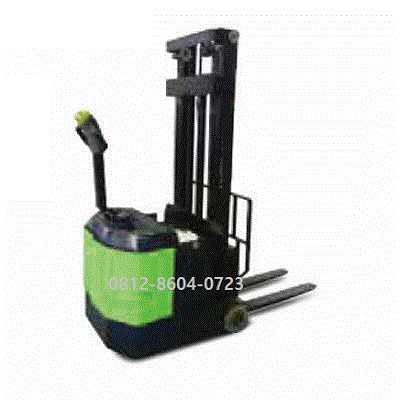

The iMOW / EP Equipment ES06 Series (model variant ES06-CA) is a lightweight electric counterbalance pallet stacker designed for tight space handling, non-standard pallets, and light-to-medium warehouse operations.
Core Specifications
| Feature / Metric | Specification |
| Rated Load Capacity | 0.6 Ton (600 kg / 1,320 lbs) |
| Load Center | 500 mm |
| Operator Type | Walkie / Pedestrian-operated |
| Power Source | Electric (AC Drive / 24V System) |
| Design Type | Counterbalance stacker (no straddle legs under forks) |
Key Technical Parameters
-
Lifting Performance:
-
Standard Lift Height: Up to 2,920 mm (~2.9 meters / 9.5 ft) depending on mast configuration.
-
Drive/Lift System: Electric lifting and travel via AC motor system for smooth speed control.
-
-
Power & Electrical:
-
Battery Voltage/Capacity: 24V (Available with AGM, Lead-Acid, or LFP Lithium-Ion options depending on regional spec).
-
Charger: Onboard or external plug-in fast charger.
-
-
Maneuverability & Safety:
-
Turning Radius: Ultra-small turning radius suited for narrow aisles and non-standard pallet loading.
-
Braking: Electromagnetic / Regenerative braking.
-
Control Tiller: Ergonomic tiller head with dual-hand controls, belly safety switch, and creep-speed option.
-
