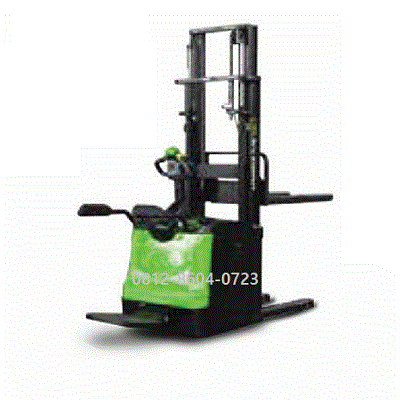

IMOW Pallet Stacker ES20 | 2 ton
IMOW Pallet Stacker ES20 | 2 ton
Core Specifications Breakdown
- Model (ES20-20RAS)
- Rated Load Capacity 2,000 kg (2.0 Tons) 2,000 kg (2.0 Tons)
- Load Center Distance 600 mm 600 mm
- Operator Type Pedestrian (Walkie with long tiller) Standing (Foldable platform & protective arms)
- Standard Lift Height (h_3) 2,912 mm (Max up to 3,000 mm standard; options up to 5,500 mm) 2,912 mm (Max up to 3,000 mm standard; options up to 5,500 mm)
- Fork Dimensions (s – l) 60 mm × 190 mm × 1,150 mm 60 mm × 190 mm × 1,150 mm
- Distance Between Forks (b_5) 600 mm (Optional: 685 mm) 600 mm (Optional: 685 mm)
- Overall Dimensions (L \times W) 1,940 mm × 800 mm 2,035 mm × 850 mm
- Turning Radius (W_a) 1,589 mm 1,738 mm (Platform raised) / 2,099 mm (Platform extended)
- Service Weight 1,170 kg 1,370 kg (Lead-acid) / 1,350 kg (Li-ion
Description
IMOW Pallet Stacker ES20 | 2 ton
BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Stacker ES20 | 2 ton
The iMOW ES20 2-Ton (2,000 kg) Electric Pallet Stacker series (manufactured under EP Equipment) is available in two core configurations: the walkie/pedestrian stacker (ES20-WA) and the ride-on/standing stacker (ES20-20RAS).
Core Specifications Breakdown
Below are the detailed technical specifications for both models:
| Technical Parameter | Walkie Model (ES20-WA) | Ride-On / Standing Model (ES20-20RAS) |
| Rated Load Capacity | 2,000 kg (2.0 Tons) | 2,000 kg (2.0 Tons) |
| Load Center Distance | 600 mm | 600 mm |
| Operator Type | Pedestrian (Walkie with long tiller) | Standing (Foldable platform & protective arms) |
| Standard Lift Height (h_3) | 2,912 mm (Max up to 3,000 mm standard; options up to 5,500 mm) | 2,912 mm (Max up to 3,000 mm standard; options up to 5,500 mm) |
| Fork Dimensions (s – l) | 60 mm × 190 mm × 1,150 mm | 60 mm × 190 mm × 1,150 mm |
| Distance Between Forks (b_5) | 600 mm (Optional: 685 mm) | 600 mm (Optional: 685 mm) |
| Overall Dimensions (L \times W) | 1,940 mm × 800 mm | 2,035 mm × 850 mm |
| Turning Radius (W_a) | 1,589 mm | 1,738 mm (Platform raised) / 2,099 mm (Platform extended) |
| Service Weight | 1,170 kg | 1,370 kg (Lead-acid) / 1,350 kg (Li-ion) |
Performance & Powertrain
-
Drive Motor Rating: 1.1 kW AC (ES20-WA) / 1.6 kW AC (ES20-20RAS)
-
Lift Motor Rating: 3.0 kW
-
Travel Speed (Laden / Unladen):
-
ES20-WA: 4.5 / 5.0 km/h -
ES20-20RAS: 5.5 / 6.0 km/h
-
-
Lifting Speed (Laden / Unladen): 0.11 / 0.16 m/s
-
Lowering Speed (Laden / Unladen): 0.32 / 0.23 m/s
-
Max Gradeability (Laden / Unladen):
-
ES20-WA: 6% / 12% -
ES20-20RAS: 8% / 16%
-
-
Brake System: Electromagnetic Service Brake with anti-rolling back function.
Electrical & Battery Options
-
System Voltage: 24V
-
Standard Battery: 24V / 280Ah Lead-Acid
-
Optional Li-ion Configurations: 24V / 205Ah or 24V / 150Ah maintenance-free Lithium-ion
-
Traction Control: AC Drive Controller
Wheels & Chassis
-
Tire Material: Polyurethane (PU)
-
Drive Wheel Size: $\Phi 230 \times 75$ mm
-
Load Wheel Size: $\Phi 85 \times 70$ mm (Double tandem)
-
Castor Wheels: $\Phi 130 \times 55$ mm
