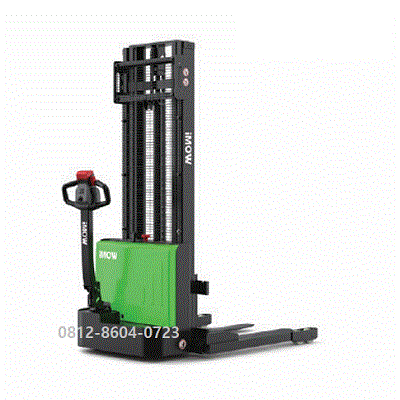

IMOW Pallet Stacker ESD122 | 1.2 ton
IMOW Pallet Stacker ESD122 | 1.2 ton
Feature Specification
- Model ESD122
- Rated Load Capacity (Q) 1,200 kg (1.2 tons)
- Load Center Distance (c) 600 mm
- Operation Type Pedestrian / Walkie
- Drive Unit Electric (DC Motor)
- Service Weight (with Battery) ~636 kg
Description
IMOW Pallet Stacker ESD122 | 1.2 ton
BELIALAT.COM support unit, parts, service, rental, maintenance cotract, overhaul and reconditioned IMOW Pallet Stacker ESD122 | 1.2 ton
The iMOW ESD122 (manufactured by EP Equipment) is a 1.2-ton pedestrian electric straddle stacker. Designed with adjustable straddle outriggers, it can handle standard open pallets as well as bottom-boarded (closed) pallets in tight warehouse aisles.
Technical Specifications Summary
Basic Performance & Capacity
| Feature | Specification |
| Model | ESD122 |
| Rated Load Capacity (Q) | 1,200 kg (1.2 tons) |
| Load Center Distance (c) | 600 mm |
| Operation Type | Pedestrian / Walkie |
| Drive Unit | Electric (DC Motor) |
| Service Weight (with Battery) | ~636 kg |
Dimensions & Operations
| Feature | Specification |
| Standard Lift Height (h_3) | 2,490 mm (Options up to 3,590 mm / 3.6 m) |
| Retracted Mast Height (h_1) | 1,856 mm (standard 2,490 mm lift model) |
| Extended Mast Height (h_4) | 3,071 mm (standard 2,490 mm lift model) |
| Lowered Fork Height (h_13) | 60 mm |
| Fork Dimensions (s / e / l) | 35 mm × 100 mm × 1,070 mm (Options: 920, 1150, 1220 mm) |
| Adjustable Fork Spread (b_5) | 200 mm – 760 mm |
| Adjustable Outrigger Width (b_4) | 985 mm / 1,085 mm / 1,185 mm |
| Overall Length (l_1) | 1,653 mm |
| Overall Width (b_1/b_2) | 1,135 mm / 1,235 mm / 1,335 mm |
| Turning Radius (W_a) | 1,477 mm |
| Aisle Width (Pallet 1000-1200) | 2,305 mm |
Speed, Drive & Hydraulics
| Feature | Specification |
| Travel Speed (Laden / Unladen) | 4.2 / 4.5 km/h |
| Lifting Speed (Laden / Unladen) | 0.10 / 0.14 m/s |
| Lowering Speed (Laden / Unladen) | 0.10 / 0.10 m/s |
| Max. Gradeability (Laden / Unladen) | 3% / 10% |
| Drive Motor Rating (S_2 / 60 min) | 0.75 kW |
| Lift Motor Rating (S_3\ 15\%) | 2.2 kW |
| Service Brake | Electromagnetic |
Battery & Tyres
| Feature | Specification |
| Battery Voltage & Capacity | 24V / 85Ah (2× 12V/85Ah AGM Maintenance-Free) |
| Charger | Built-in / Integrated 24V-10A internal charger |
| Tyre Type | Polyurethane (PU) |
| Drive Wheel Size | Ø210 × 70 mm |
| Load Wheel Size | Ø100 × 50 mm (Double load wheels) |
Key Design Highlights
-
Adjustable Straddle Legs: Outriggers expand to fit various pallet sizes, allowing low fork entry right down to 60 mm off the floor.
-
Convenient Charging: Maintenance-free AGM batteries charge via a standard wall outlet with the built-in charger—no dedicated battery room required.
-
Tight-Space Control: Features an extra-long offset tiller handle with a crawl speed button for tight maneuvering.
