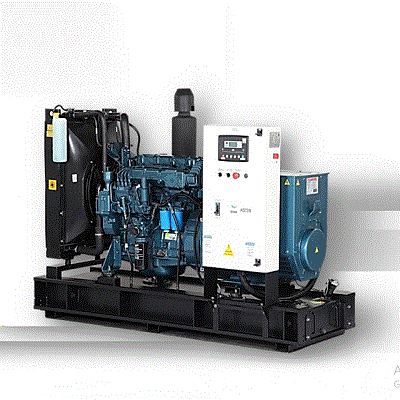

Kirloskar Genset KG15W | 15 kVA

Description

Kirloskar Genset KG15W | 15 kVA
BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Kirloskar Genset KG15W | 15 kVA

Specifications

Brand : Kirloskar
Model : Open type
Type : KG15W.

Generataor

Prime power output (PRP) kVA / kW : 15/12
Standby power output (ESP)  kVA/kW : 16.5/13.2

Fuel tank capacity – Open type Liters : 65
Fuel tank capacity – Silent type Liters : 43

Fuel consumption * PRP L/Hr 75% / 100% : 3.29/4.27
Sound level at 7m silent dB(A) : 70

Dimension (LxWxH) – open type cm : 141x104x133
Dimension (LxWxH) – silent type cm : 205x105x135

Dry weight – Open (Net) kg : 650
Dry weight – Silent (Net) kg : 920

Engine

Make/Model : Kirloskar/2R1040
Engine output prime power  hp : 27

Nomor of cylinder & configuration : 2 – inline
Bore x stroke mm : 105 x 120

Displacement liters : 2.08
Aspiration : Natural

Starting system : 12 Volt
Governor : Mechanical

Lubricant oil sump capacity liters : 7
Coolant capacity liters : 10

Alternator

Make ( Brand )  : Standford
Model : PI144GI

Number of bearing : Single
Insulation class / temperature rise at ambient 40°  deg : H/125°

Wires : 12
Ingress protection : IP23

AVR Model : AS480
Excitation : Self excited

Voltage regulation % : +/-1%
