Komatsu Forklift FB15 | 1.5 ton

Description

Komatsu Forklift FB15 | 1.5 ton

ELIALAT.COM sales, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FB15 | 1.5 ton

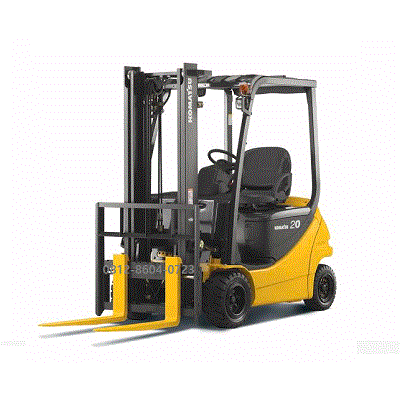

The Komatsu FB15 is an electric counterbalanced forklift (and available in a reach truck configuration, such as the FB15RL) designed for material handling in warehouses and indoor industrial spaces.

Below are the unit specifications for the standard Komatsu FB15 Electric Forklift (1.5-ton capacity) series:

Key Performance Specs

• Nominal Load Capacity: 1.5 tons (1,500 kg)

• Load Center: 500 mm

• Standard Lifting Height: 3,000 mm (3 meters), with options extending up to 6,000 mm depending on the equipped mast type (e.g., duplex or triplex).

• Travel Speed (Laden/Unladen): Approximately 15 / 17 km/h

• Lifting Speed (Laden/Unladen): 0.34 / 0.60 m/s

Dimensions & Weight

• Overall Width: 1,110 mm

• Structural Height (Mast Lowered): 2,070 mm

• Turning Radius: 1.75 m

• Total Machine Weight: Approximately 2.93 tons (including battery weight of ~0.72 tons).

Electrical System & Battery

• System Voltage: 48 V

• Traction Motor Power: 9 kW AC motor

• Lifting Motor Power: 9 kW AC motor

• Drive System: Advanced dual AC front-wheel drive or center drive system (on reach models) for enhanced stability and shorter stopping distances.

Safety & Operational Features

• Operator Presence Sensing (OPS): Automatically stops travel and hydraulic lifting functions if the operator is not safely seated or at the controls.

• Water Resistance: Complies with IPX4 standards, protecting internal electrical components from water splashes.

• Ergonomics: Designed with a reduced floor height for frequent entry/exit, a small-diameter steering wheel, and a vibration-absorbing floor mat.
