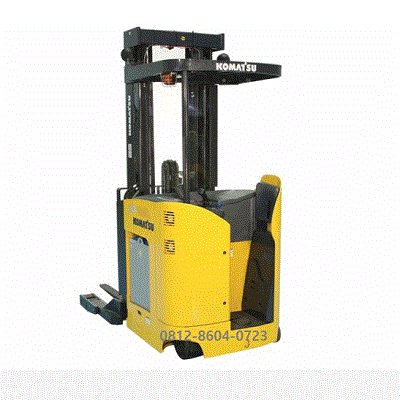

Komatsu Forklift FR18K | 1.8 ton

Description

Komatsu Forklift FR18K | 1.8 ton

BELIALAT.COM support, unit, parts, service, rental, maintenance contract, overhaul, reconditioned Komatsu Forklift FR18K | 1.8 ton

The Komatsu FR18K (specifically from the FR Series) is an electric, stand-up narrow aisle reach truck designed for high-density warehouse environments. While the “18” naming convention traditionally represents a 3,500 lbs (approx. 1.6 to 1.75 ton) rated capacity at a standard load center, it belongs to Komatsu’s 1.5 – 2.25 ton frame family.

Key Specifications & Performance

• Power Source: 36V Battery Electric system (utilizes high-efficiency AC drive and AC hydraulic pump motors).

• Rated Capacity: 3,500 lbs (1,750 kg / 1.75 ton) at a 24-inch (600 mm) load center.

• Operation Type: Stand-up, 90-degree side-stance operator positioning.

• Service Weight: Approximately 6,005 lbs (2,725 kg) excluding the battery.

• Tire Type: Cushion rubber drive tire (13 x 5.5 in) with polyurethane caster and tandem load wheels.

Dimensions & Maneuverability

• Maximum Fork Height: Standard configurations typically feature a 3-stage mast reaching up to 210 inches (5,335 mm).

• Mast Lowered Height: 95 inches (2,415 mm).

• Length to Fork Face: 54.1 inches (1,375 mm) with the carriage retracted.

• Overall Truck Width: 43 inches (1,090 mm).

• Turning Radius: Outside radius of 69.4 inches (1,760 mm).

• Right Angle Stacking Aisle: 100 inches (2,540 mm), making it highly optimized for tight warehouse aisles.

Operational Features

• KICS AC Control: Komatsu Intelligent Control System provides smooth, proportional hydraulic lifting, lowering, and travel speeds.

• Regenerative Braking: Features 4-mode regenerative braking that re-captures power during deceleration and plugging to extend battery life.

• Ergonomics: Multi-function control handle dictates direction, travel speed, lift, reach, tilt, and sideshift with minimal effort. Includes anti-fatigue padding for the operator’s knees, back, and arms.

• Safety: Built-in operator presence pedal with mast lockout and automatic return-to-neutral if the operator leaves the compartment.
