Toyota Forklift 8FBH14 | 1.4 ton

Description

Toyota Forklift 8FBH14 | 1.4 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 8FBH14 | 1.4 ton

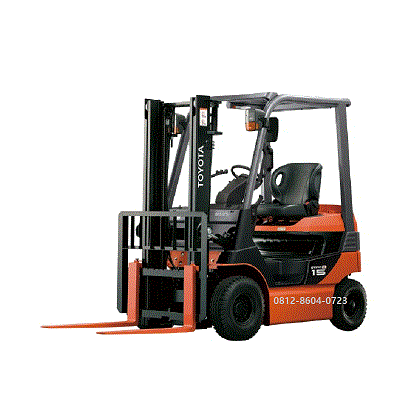

The Toyota 8FBH14 is a high-capacity electric counterbalance forklift designed for demanding warehouse and manufacturing environments. The “H” in the model name indicates a “High Capacity” configuration, which includes a larger battery compartment and a more robust chassis compared to the standard 8FB14.

Core Specifications

• Model: 8FBH14 (Toyota 8-Series).
• Rated Load Capacity: 1,350 kg (approx. 1.4 tons).
• Load Center: 500 mm.
• Power Type: 48V Electric (Battery).
• Operator Position: Rider Seated.
• Tire Type: Pneumatic or Solid Pneumatic (Solid).

Performance

• Travel Speed (Full Load / No Load): 14.5 / 17.0 km/h.
• Lifting Speed (Full Load / No Load): 470 / 650 mm/sec.
• Lowering Speed (Full Load / No Load): 500 / 550 mm/sec.
• Gradeability (Full Load): 23% (3-minute rating).
• Drive Motor Rating: 7.6 kW (AC).
• Load Handling Motor Rating: 9.5 kW (AC).

Dimensions & Weight

• Overall Width: 1,060 mm.
• Length to Fork Face: 2,080 mm.
• Turning Radius (Outside): 1,760 mm.
• Overhead Guard Height: 2,105 mm (H-model height).
• Wheelbase: 1,410 mm.
• Basic Right Angle Stacking Aisle Width: 2,160 mm (plus load length).
• Total Weight (Without Battery): Approx. 2,005 kg.

Battery Requirements

• Standard Voltage/Capacity: 48V / 545 Ah (5-hour rating).
• Battery Weight: Approx. 845 kg.

Key Features

• System of Active Stability (SAS): Includes Active Mast Function Control and Active Control Rear Stabilizer to prevent tipping and load spills.
• Operator Presence Sensing System (OPS): Disables travel and hydraulic functions if the operator is not seated properly.
• IPX4 Water Resistance: Designed for safe operation in outdoor environments with light rain or wet conditions.
• Regenerative Braking: Restores energy to the battery during deceleration and switch-back operations to extend working hours.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
