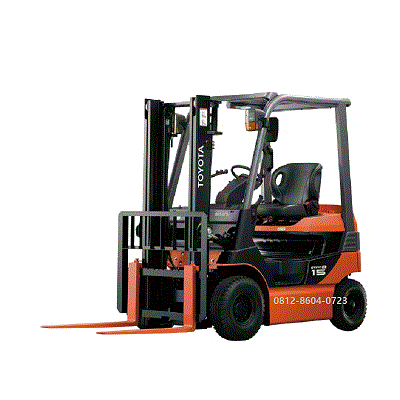

Toyota Forklift 8FBH18 | 1.8 ton

Description

Toyota Forklift 8FBH18 | 1.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 8FBH18 | 1.8 ton

The Toyota 8-Series 8FBH18 is a high-capacity electric counterbalance forklift designed for heavy-duty applications. Below are the key technical specifications for this 1.8-ton model:

Features Specifications Toyota Forklift 8FBH18 | 1.8 ton

Model: 8FBH18.
Load Capacity: 1,750 kg (Standard at 500mm load center).
Power Type: 48V Battery.
Operator Position: Rider Seated.
Tire Type: Pneumatic (Standard) or Solid Pneumatic.

Performance

Travel Speed (Full Load / No Load): 14.5 km/h / 17.0 km/h.
Lifting Speed (Full Load / No Load): 370 mm/sec / 650 mm/sec.
Lowering Speed (Full Load / No Load): 500 mm/sec / 550 mm/sec.
Gradeability (Full Load): 11% – 18% (depending on rating time).
Turning Radius (Outside): 1,780 mm.

Dimensions

Overall Width: 1,115 mm.
Length to Fork Face: 2,115 mm.
Overhead Guard Height: 2,105 mm (Note: This is higher than the standard 8FB18 model).
Mast Lowered Height: 1,970 mm (Standard V-Mast).
Standard Max Fork Height: 3,000 mm.
Fork Size (L x W x T): 1,070 x 100 x 35 mm.
Ground Clearance: 65 mm (at Mast, full load).

Electric Motors & Battery

Drive Motor: 7.6 kW.
Load Handling Motor: 9.5 kW.
Standard Battery Capacity: 48V / 545 Ah (5-hour rating).
Control Type: Transistor Inverter (for both Drive and Load Handling).

Key Features

System of Active Stability (SAS): Controls lateral stability and mast functions to prevent tip-overs.
Operator Presence Sensing (OPS): Disables travel and hydraulic functions if the operator is not properly seated.
Water Resistance: Rated at IPX4, allowing for operation in various weather conditions and work environments.
Regenerative Braking: Restores power to the battery during deceleration.

Main Specification, Toyota Forklift 8FBH18 | 1.8 ton

Model : 8FBH18
Load Capacity : 1800 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
