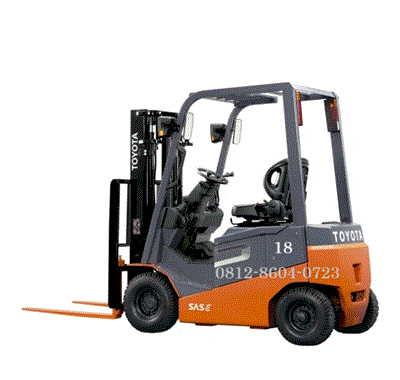

Toyota Forklift 8FBN18 | 1.8 ton

Description

Toyota Forklift 8FBN18 | 1.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift 8FBN18 | 1.8 ton

The Toyota Forklift model 8FBN18 is an electric forklift with a nominal lifting capacity of 1.8 tons (1,750 kg – 1,800 kg depending on market specifications and tires). Here are the key technical specifications:

Key Characteristics

Model: 8FBN18.
Load Capacity: 1,750 kg – 1,800 kg.
Load Center: 500 mm.
Power Type: Electric (Battery).
Operator Position: Rider Seated.

Dimensions & Weight

Length to Fork Face: 2,115 mm.
Overall Width: 1,065 mm.
Overhead Guard Height: 2,095 mm.
Turning Radius: 1,780 mm.
Minimum Corridor Width (Right Angle Stacking Aisle): ± 2,185 mm (depending on pallet size).
Unit Weight (Without Battery): ± 2,390 kg.

Performance

Travel Speed ​​(Unloaded / Loaded): 17.5 km/h / 15.0 km/h.
Lifting Speed ​​(Unloaded / Loaded): 650 mm/s / 370 mm/s.
Gradeability (Full Load): 15.5% – 23.0%.
Braking System: Hydraulic (Foot) and Hand (Parking).
Electrical & Motor Specifications.
Battery Voltage: 48V.
Battery Capacity (5-hour rating): Min. 390 Ah / Max. 565 Ah.
Drive Motor: 7.6 kW (AC Inverter).
Hydraulic Motor (Load Handling): 9.5 kW (AC Inverter).

Features

SAS-ε (System of Active Stability): Maintains unit stability during maneuvers and automatically adjusts the mast tilt angle and speed.
OPS (Operator Presence Sensing): A safety system that stops driving and lifting functions if the operator is not seated properly.
Anti-Rollback: Prevents the unit from rolling backward when stopped on a slope.
Water Resistance (IPX4): Designed to withstand splashing water, allowing for limited outdoor operation.
Digital Display: An indicator screen for monitoring battery capacity, operating hours, and unit diagnostics.

Main Specification, Toyota Forklift 8FBN18 | 1.8 ton

Model : 8FBN18
Load Capacity : 1800 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.

Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.

Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
