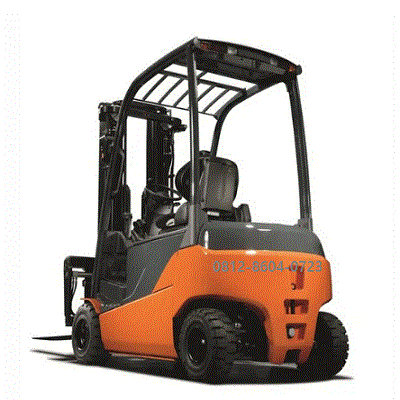

Toyota Forklift C4E180LII | 1.8 ton

Description

Toyota Forklift C4E180LII | 1.8 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C4E180LII | 1.8 ton

The Toyota C4E180LII is a 1.8-ton electric counterbalance forklift typically associated with the 8-Series lineup.
It is designed for indoor and warehouse environments where zero emissions and low noise levels are required.
Below are the technical specifications for this unit:

Core Performance & Capacity

Load Capacity: 1,800 kg (1.8 tons).
Load Center: 500 mm.
Power Type: Electric (Battery powered).
Operator Position: Rider Seated.
Drive Type: 4-wheel electric.

Dimensions & Maneuverability

Overall Width: ~1,065 mm.
Turning Radius (Outside): 1,780 mm.
Length to Fork Face: 2,115 mm.
Overhead Guard Height: ~2,095 mm.
Standard Fork Size (TxWxL): 35 x 100 x 1,070 mm.
Right-Angle Stacking Aisle Width: ~2,185 mm (plus load length and clearance).

Mast & Lifting

Standard Max Fork Height: 3,000 mm (options available up to 6,000 mm).
Free Lift: 145 mm (standard mast).
Tilt Range: 6 degrees forward / 11 degrees backward.
Lifting Speed (Full Load): ~370 mm/sec.
Lowering Speed (Full Load): ~500 mm/sec.

Electrical System

Voltage: 48V.
Battery Capacity: Standard 390 Ah (High-capacity options up to 565 Ah).
Motor (Drive): 7.6 kW AC motor.
Motor (Load Handling/Steering): 9.5 kW AC motor.
Controller Type: AC Inverter.

Key Features

SAS (System of Active Stability): Electronic monitors that help prevent lateral tip-overs by locking the rear axle and controlling mast functions.
OPS (Operator Presence Sensing): Disables travel and hydraulic functions if the operator is not properly seated.
IPX4 Rating: Provides water resistance, allowing for limited outdoor use in light rain or damp conditions.
Digital Display: Integrated monitoring system for battery status, hour meter, and performance modes.

Main Specification, Toyota Forklift C4E180LII | 1.8 ton

Model : C4E180LII
Load Capacity : 1800 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm
