Toyota Forklift C4E200LII | 2 ton

Description

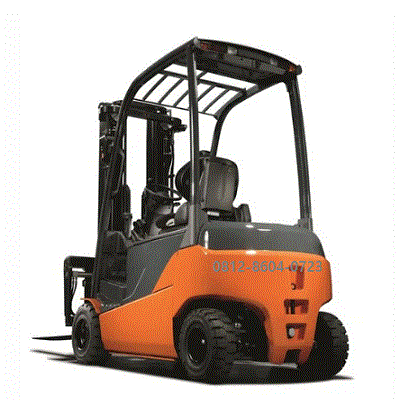

Toyota Forklift C4E200LII | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C4E200LII | 2 ton

The Toyota C4E200LII is a 2.0-ton electric counterbalance forklift, part of the Toyota Traigo/BT Cargo 48V series.
The “L” in the model designation typically indicates a long-wheelbase version, providing enhanced stability and a larger battery compartment compared to the standard C4E200II.

Core Specifications

Load Capacity: 2,000 kg (2.0 tons).
Load Center: 500 mm.
Power Source: 48V Electric (Battery).
Operator Type: Rider seated.
Tire Type: Super Elastic (SE) / Solid Rubber.

Dimensions & Weight

Service Weight: Approx. 3,600 kg (including battery).
Wheelbase: 1,521 mm (Long version).
Overall Length (to fork face): 2,005 mm.
Overall Width: 1,050 mm.
Overhead Guard Height: 2,055 mm.
Turning Radius (Wa): 1,650 mm.
Aisle Width (1000×1200 pallet crossways): 3,325 mm.

Performance Data

Travel Speed (with/without load): 16 / 16 km/h.
Lift Speed (with/without load): 0.43 / 0.61 m/s.
Lowering Speed (with/without load): 0.53 / 0.55 m/s.
Gradeability (with load): 16.3%.
Service Brake: Hydraulic.
Mast & Lifting (Standard 2-Stage V-Mast).
Standard Lift Height (h23): 3,300 mm.
Mast Lowered Height (h1): 2,150 mm.
Free Lift (h2): 120 mm.
Mast Extended Height (h4): 3,845 mm.
Tilt Range (Forward/Backward): 5° / 7°.

Battery Information

Voltage: 48V.
Nominal Capacity: 660 Ah.
Battery Weight: Approx. 1,013 kg.

Key Features

System of Active Stability (SAS): Features active mast control and swing lock cylinder to prevent tipping.
AC Drive System: Provides smooth acceleration and regenerative braking.
Operator Ergonomics: Includes a memory-tilt steering column, adjustable suspension seat, and wide-view mast for better visibility.
Digital Display: Real-time monitoring of battery capacity, speedometer, and hour meter.

Main Specification, Toyota Forklift C4E200LII | 2 ton

Model : C4E200LII
Load Capacity : 2000 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm
