Toyota Forklift C6E200VII | 2 ton

Description

Toyota Forklift C6E200VII | 2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C6E200VII | 2 ton

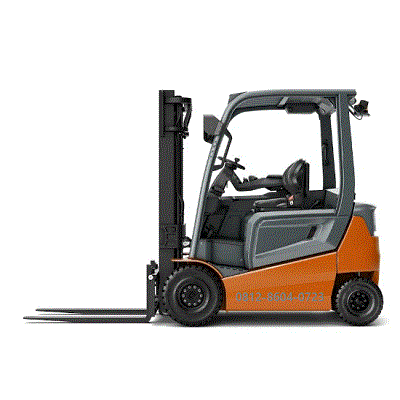

The Toyota C6E200VII is a 2-ton compact electric forklift part of the BT Cargo/8-Series range. It is designed for high-performance warehouse operations, utilizing an 80V electrical system.

Performance & Capacity

Load Capacity: 2,000 kg (2 tons).
Load Center: 500 mm.
Drive Type: Electric (AC Drive Control).
Travel Speed (Full Load): 16 km/h (Standard) / 19 km/h (Performance).
Lift Speed (Full Load): 0.43 m/s (Standard) / 0.46 m/s (Performance).
Lowering Speed: 0.56 m/s.

Dimensions & Weight

Service Weight: 4,318 kg (including battery).
Overall Length (to fork face): 2,280 mm.
Overall Width: 1,195 mm.
Turning Radius (Wa): 2,025 mm.
Overhead Guard Height: 2,215 mm.
Wheelbase: 1,575 mm.

Mast & Lifting

Standard Lift Height (h3): 3,300 mm (options available up to 6,500 mm).
Mast Lowered Height (h1): 2,235 mm (for standard 3.3m mast).
Free Lift (h2): 120 mm.
Tilt (Forward/Backward): 4.25 / 8 degrees.

Battery & Electrical

Battery Voltage: 80 V.
Nominal Capacity: 500 Ah.
Battery Weight: 1,210 kg.
Drive Motor Rating: 16.1 kW (Standard) / 21.4 kW (Performance).
Lift Motor Rating: 17.3 kW.

Tires & Chassis

Tire Type: SE (Super Elastic).
>Tire Size (Front): 23×9-10.
>Tire Size (Rear): 18×7-8.
Ground Clearance (Lowest point): 95 mm.

Core Features

System of Active Stability (SAS): Standard Toyota safety technology that monitors forklift operations to reduce the risk of tip-overs.
Operator Presence Sensing (OPS): Ensures the truck won’t move or lift if the operator is not properly seated.
Compact Design: The “VII” designation typically indicates a compact 4-wheel chassis, making it suitable for tighter aisles compared to standard heavy-duty units.

Main Specification, Toyota Forklift C6E200VII | 2 ton

Model : C6E200VII
Load Capacity : 2000 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm
