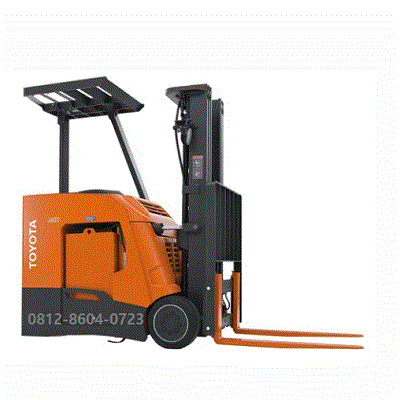

Toyota Forklift CB4250-C50 | 2.2 ton

Description

Toyota Forklift CB4250-C50 | 2.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift CB4250-C50 | 2.2 ton

Main Specification, Toyota Forklift CB4250-C50 | 2.2 ton

Identification
Model : CB4250-C50
Load Capacity : 2200 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm

Motor Specifications

Voltage/Capacity (5-hour ratings) STD/High : 48/330 | 48/485 ) V/Ah
Electric Motors Drive/ Hydraulic : 7.6/9.5 kw

Weight
Service weight without battery : 659 kg
Axle load, without load, drive/support arm wheels : 679/390 kg

Wheels
Drive/support arm wheels : Polyurethane
Wheel size, front : Ø 250×92 mm
Wheel size, rear : Ø 140×70 mm

Dimensions
Overall height h15 : 1284 mm
Stand height h7 : 130 mm
Coupling height towing pin h10 : 188/283/378/473 mm
Coupling height towing ball h10 : 253/393/533 mm
Overall length L1 : 1571 mm
Overall width b1 /b2 : 790/799 mm
Distance between support arms b4 : 613 mm
Ground clearance, centre of wheelbase m1 /m2 : 63/71 mm
Turning radius Wa : 1508 mm
Clear width driver compartment entrance L24 : 450 mm

Performace Data
Travel speed, with/without load : 7.5/12.0 km/h
Max. drawbar pull, with/without load : 3200 N
Gradeability, with/without load : 6/13 %
Service brake : Electric

Other

It looks like you are looking for the technical breakdown of the Toyota CB4250-C50, a robust choice for mid-range material handling.
This model is known for its balance of maneuverability and lifting power, specifically within the 2.2-ton class.
Below are the primary specifications for this unit:

Performance Specs

Model CB4250-C50.
Load Capacity 2,200 kg (approx. 2.2 tons).
Load Center 500 mm.
Power Type Internal Combustion (Typically Diesel or LPG options).
Tire Type Pneumatic (standard) or Solid/Cushion.

Dimensions & Maneuverability

Turning Radius: Designed for standard warehouse aisles, usually requiring a width of roughly 2,300–2,500 mm depending on the pallet size.
Mast Height (Lowered): Varies by mast type, but standard 2-stage masts sit around 2,000 mm.
Maximum Lift Height: Standard units usually reach 3,000 mm (3 meters), though optional 3-stage masts can extend this significantly.

Key Features & Safety

System of Active Stability (SAS): This is Toyota’s signature tech. It electronically monitors forklift operations to reduce the risk of tip-overs during turns or high-lifting.
Operator Presence Sensing (OPS): Prevents the truck from moving or lifting if the operator isn’t properly seated.

Ergonomics: Includes a fully adjustable seat and a small-diameter steering wheel to reduce operator fatigue over long shifts.

Things to Consider

Since “CB4250-C50” often refers to specific regional configurations (frequently seen in Southeast Asian or Australian markets), the exact engine model can vary. Most of these units utilize the Toyota 4Y engine (for LPG/Gas) or the 1DZ-II engine (for Diesel), both of which are legendary for their “bulletproof” reliability.
