Toyota Forklift VCE125ASF | 1.2 ton

Description

Toyota Forklift VCE125ASF | 1.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift VCE125ASF | 1.2 ton

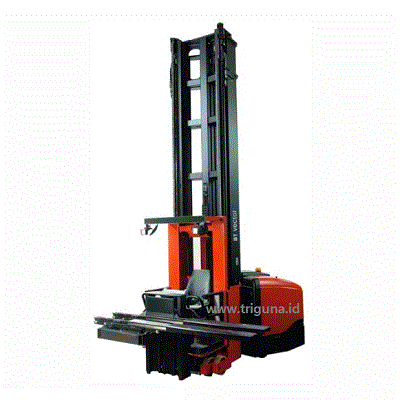

The Toyota (BT Vector) VCE125ASF is a high-performance, very narrow aisle (VNA) “man-up” combi-truck designed for simultaneous pallet handling and order picking.
It features a unique articulated chassis that allows for exceptional maneuverability in extremely tight warehouse spaces.

Core Specifications Toyota Forklift VCE125ASF | 1.2 ton

• Load Capacity: 1,250 kg (1.25 tons).
• Load Center: 600 mm.
• Power Type: Electric (48V).
• Operator Position: Man-up (Seated or Stand-on).
• Drive Type: Articulated steering with twin drive units.

Performance Data

• Travel Speed (with/without load): 10.0 / 12.0 km/h.
• Lift Speed (with/without load): 0.40 / 0.45 m/s.
• Lowering Speed (with/without load): 0.40 / 0.40 m/s.
• Max Lift Height: Up to 13,340 mm (13.3 meters).
• Max Picking Height: Up to 14,250 mm

Dimensions & Weights

• Chassis Width: 1,270 mm (Standard).
• Overall Length (to fork face): 3,616 mm.
• Turning Radius: 1,698 mm.
• Service Weight (without battery): ~6,920 kg.
• Battery Weight: ~1,790 kg.
• Fork Dimensions: 65 x 180 x 1,200 mm (Standard).

Electrical System

• Drive Motors: 2 x 5.5 kW (AC).
• Lift Motor: 14.0 kW.
• Battery Voltage/Capacity: 48V / 930Ah – 1,240Ah.
• Braking: Regenerative electric service brake; electro-mechanical parking brake.

Key Features

• Articulated Chassis: Minimizes the space required for aisle-to-aisle transfers, allowing for narrower transfer aisles compared to non-articulated models.
• Advanced Lifting System (ALS): Uses nitrogen-charged hydraulic accumulators to store energy when lowering, reducing energy consumption for the next lift by up to 35%.
• BT Optipace: Automatically optimizes travel and lift speeds based on the current load weight and lift height for maximum safety and productivity.
• Shuttle Forks: Equipped with slide-through forks that move laterally to handle pallets on either side of the aisle without turning the truck.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

• The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

• The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

• Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

• Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

• Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

• Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.
• Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.
• You will also instantly realize that you have a clear view of the forks and load.
• This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

• A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

• The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

• The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

• The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

• Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient.
• Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

• The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences.
• Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

• The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

• The seat swivels to the right to facilitate operation in reverse. Firstly,The seat also swivels to the left to make it easier to enter and exit the forklift.
• An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse.
