Toyota Forklift VRE125SF | 1.2 ton

Description

Toyota Forklift VRE125SF | 1.2 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift VRE125SF | 1.2 ton

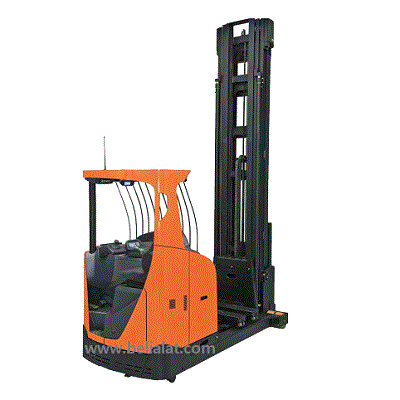

The Toyota BT Vector VRE125SF is a 1.25-ton Very Narrow Aisle (VNA) reach truck specifically designed for “man-down” operations.
The “SF” in the model name refers to its Shuttle Fork configuration, which allows for high-speed lateral pallet handling without rotating the entire mast, making it ideal for extremely tight warehouse spaces.

Core Technical Specifications

Manufacturer / Model Toyota BT Vector VRE125SF.
Load Capacity (Q) 1,250 kg (1.25 tons).
Load Center (c) 600 mm.
Maximum Lift Height (h23) Up to 11,300 mm (11.3 meters).
Travel Speed (Full/No Load) 11.25 km/h / 14 km/h.
Lift Speed (Full/No Load) 0.40 m/s / 0.50 m/s.
Battery Voltage / Capacity 48 V / up to 930 Ah.
Service Weight (with battery) Approx. 4,630 kg.

Dimensions & Maneuverability

Aisle Width (Ast): Approximately 1,450 mm (for 800×1200 pallets lengthways).
Turning Radius (Wa): 2,389 mm to 2,789 mm (depending on wheelbase configuration).
Overall Width (b1): 1,375 mm to 1,490 mm.
Overall Length (l1): 2,740 mm to 3,140 mm.
Ground Clearance: 70 mm (below mast) / 60 mm (center of wheelbase).

Key Features & Performance

Shuttle Fork System: Unlike a standard turret head that rotates, the shuttle fork slides laterally. This requires even less aisle width and is optimized for high-density storage.
Transitional Lift Control (TLC): This patented system provides completely smooth, shock-free lifting and lowering, even at maximum speeds, protecting the load from vibrations.
BT Optipace: Automatically optimizes the truck’s travel and lift speeds based on the current lift height and load weight to maintain stability and safety.
Guidance Systems: Specifically designed for wire or rail guidance to allow for high travel speeds within very narrow aisles.
Ergonomics: Features a seated operator position with a car-like pedal layout, 360° progressive steering, and simultaneous hydraulic control.

Maintenance & Durability

AC Technology: Equipped with variable AC drive and lift motors, which are brushless for reduced maintenance and high energy efficiency through regenerative braking.
Durability: Features a heavy-duty drive unit and gearbox designed for long life-cycles in medium to high-intensity warehouse environments.

Specifications Toyota Forklift VRE125SF | 1.2 ton

Manufacturer : Toyota Very Narrow Aisle (VNA)
Model : VRE125SF
Drive : Electric

Operator type : Seated
Load capacity/rated load Q : 1250 kg
Load centre C : 600 mm

Wheelbase y : 1655 mm
Service weight without battery : 6150* kg
Axle load, with load, drive/support arm wheel : 3825/4725 kg
Axle load, without load, drive/support arm wheel : 4410/3135 kg
