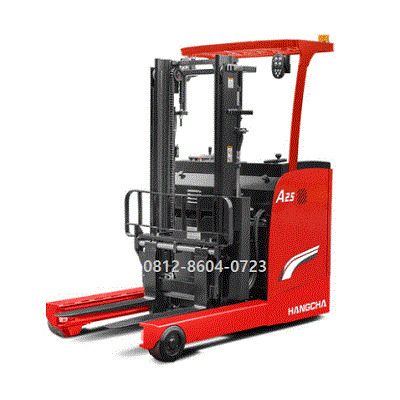

Hangcha Forklift HRT20 | 2 ton

Description

Hangcha Forklift HRT20 | 2 ton

BELIALAT.COM support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hangcha Forklift HRT20 | 2 ton

Hangcha Forklift HRT20 | 2 ton, Specifications

The Hangcha HRT20 (often listed as part of the A Series Premium Reach Truck lineup) is a high-performance, 2-ton electric reach truck designed for narrow-aisle warehousing and high-rack storage.
Below are the primary specifications for the 2.0t (2,000 kg) model:

Performance & Capacity

Load Capacity: 2,000 kg (2.0 Tons).
Max Lift Height: Up to 12.5 meters (standard masts vary from 5m to 12.5m).
Travel Speed (Laden/Unladen): Up to 14 km/h.
Lift Speed (Laden): Approx. 0.35 – 0.50 m/s (varies by motor configuration).
Gradeability: 10% to 15% (depending on load).

Dimensions & Maneuverability

Turning Radius: Approx. 1,700 – 1,800 mm (highly compact for narrow aisles).
Aisle Width (Pallet 1000×1200 cross): Approx. 2,800 – 2,950 mm.
Wheelbase: ~1,450 mm.
Overall Width: ~1,270 mm.

Power System (Electric)

Drive Type: Battery Electric (Lead-Acid or Lithium-Ion options).
Battery Voltage: 48V.
Nominal Capacity: Typically 400Ah to 700Ah (depending on shift requirements).
Motor Technology: Full AC System (AC Drive, AC Lift, and AC Steering motors) for reduced maintenance and better efficiency.

Key Features & Components

Precision Control: Equipped with German-made ZF gearboxes and Schabmüller motors in the premium versions.
Steering: 360-degree or 180-degree electronic power steering (EPS) as standard.
Hydraulics: Proportional hydraulic system for smooth lifting and “soft landing” (automatically slows fork speed before reaching the floor).
Safety: * Automatic speed reduction during cornering.
Emergency power-off switch.
Overload protection for both electronics and hydraulics.
Ergonomics: Adjustable steering column, Grammer fingertip control system, and a multi-function instrument display.
Would you like me to compare this specific model against a different brand, or do you need the exact dimensions for a specific mast height (e.g., 8-meter or 10-meter mast)?

Characteristics

Model : Electric Reach Truck
Operator Position : Stand on Type
Load Capacity : 2000 Kg
Load Center C : 500 mm
Alternative Capacity Q2 : 1350 mm
Load Distance X : 404 mm
Wheelbase Y : 1400 mm

Weight

Service Weight : 2550 mm
Axle Loading/Loaded/Front : 3530 kg
Loading/Loaded/Rear : 520 kg

Axle Loading/Unloaded/Front : 1035 kg
Axle Loading/Unloaded/Rear : 1515 kg

Dimensions

Tilting Angle α/β Forward/Backward degree : 6/10
accordingly Mast Height, Lowered h1 2-stage Mast : 1995 mm
Std Free Lift h2 2-stage std. Mast,From Ground : 140 mm
Std. Lift Height h3 2-stage Std. Mast,
From Ground : 3000 mm

MastHeight, Extended h4 2-stage. Mast : 3955 mm
above all Heigt, Overhead Guard h6 : 2070 mm
Length, with std. forks L1 : 3160 mm

Length, to forks Face L2 : 2240 mm
Width, at Tyre b1 Single : 1070 mm
Forks s/e/l Thicness x Width x Length : 35 x 100 x 920 mm

additionally Fork Carriage Class ISO 2328, Type A/B/no : Class 2,A mm
Width, Fork Carriage b2 : 970 mm
Ground Clereance m1 Under Mast : 120 mm

Ground Clereance m2 at Center of Wheelbase : 130 mm
Right Angle Stacking Aisle Ast with L1000x W800 Pallet : 3560 mm
Turning Radius Wa : 1955 mm

Performance

Travel Speed (FWD) Loaded 1st/2nd : 18.5 km/h
Travel Speed (FWD) Unloaded 1st/2nd : 19.0 km/h
Lifting Speed Loaded : 620 mm/s } | { Lifting Speed Unloaded : 670 mm/s

after all Lowering Speed Loaded : 500 mm/s
Lowering Speed Unloaded : 550 mm/s
Max. Drawbar Pull Loaded : 13 KN

Max. Gradeability Loaded % : 33 %
afterward Service Brake Operation/Control : Foot/Hydraulic
Parking Brake Operation/Control : Hand/Mechanical

Steering Type : FHPS
Battery Voltage/ Capacity at 5-hour rating V/ah : 12/64 Volt/ah

Tyre

size, front ( standard tread ) : 6.9-9-10PR
size, rear : 5.0-8-8PR

Dual tyre

Tread front ( dual tread ) : 1000 mm
Overall width : 1190 mm
Service weight ( dual tread ) :2690 kg
