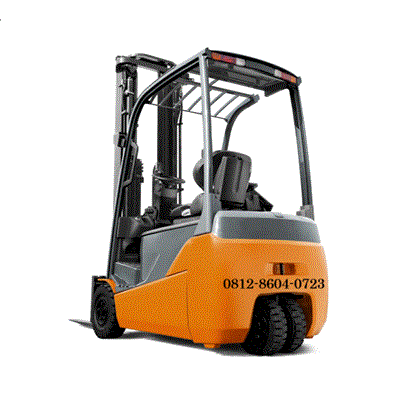

Toyota Forklift C3E160LII | 1.6 ton

Description

Toyota Forklift C3E160LII | 1.6 ton

BELIALAT.COM support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C3E160LII | 1.6 ton

The Toyota C3E160LII is a 1.6-ton electric counterbalance forklift from the BT Cargo/Traigo 48V series. The “L” in the model name indicates a larger battery compartment compared to the standard C3E160II, allowing for higher battery capacity and longer runtimes.

Technical Specifications

Model Toyota C3E160LII.
Drive Type Electric (48V).
Load Capacity 1,600 kg (1.6 Ton).
Load Center 500 mm.
Operator Type Rider Seated (3-Wheel).

Dimensions & Weight

Service Weight: ~2,981 kg (including battery).
Wheelbase: 1,521 mm (Extended for the “L” model).
Overall Width: 1,060 mm.
Overall Length (to face of forks): 1,988 mm.
Turning Radius: 1,671 mm.
Aisle Width (Pallet 1000×1200 crossways): 3,318 mm.
Ground Clearance (Full Load, below mast): 80 mm.

Performance

Travel Speed (With/Without Load): 16 / 16 km/h.
Lift Speed (With/Without Load): 0.43 / 0.61 m/s.
Lowering Speed (With/Without Load): 0.53 / 0.55 m/s.
Max Gradeability (With/Without Load): 22.2% / 23.4%.
Service Brake: Hydraulic.

Mast & Forks

Standard Lift Height (h23): 3,335 mm (Variable based on mast type).
Free Lift: 115 mm (Standard mast).
Mast Tilt (Forward/Backward): 5° / 7°.
Fork Dimensions (S/E/L): 35 x 100 x 1,000 mm.

Electrical System

Drive Motor Rating (S2 60 min): 6 kW x 2.
Lift Motor Rating (S2 5 min): 11.7 kW.
>Battery Voltage: 48V.
>Battery Capacity (K5): Up to 660 Ah (Large compartment).
>Battery Weight (Min/Max): ~1,013 kg.

Key Features

3-Wheel Configuration: Offers a tighter turning radius for better maneuverability in narrow warehouse aisles.
AC Drive Technology: Provides smooth, energy-efficient performance and regenerative braking.
Stability: Often equipped with Toyota’s System of Active Stability (SAS) for safer load handling.
Battery Access: The LII variant is specifically designed for high-intensity operations requiring larger battery capacities for multi-shift work.

Main Specification, Toyota Forklift C3E160LII | 1.6 ton

Model : C3E160LII
Load Capacity : 1600 kg
Load Center : 500 mm
Overall Width A : 1060 mm
Turning Radius (Outside) B : 1750 mm
Overhead Guard Height C : 2,025 [2,105] mm
Length to Fork Face : 2075 mm
